Description

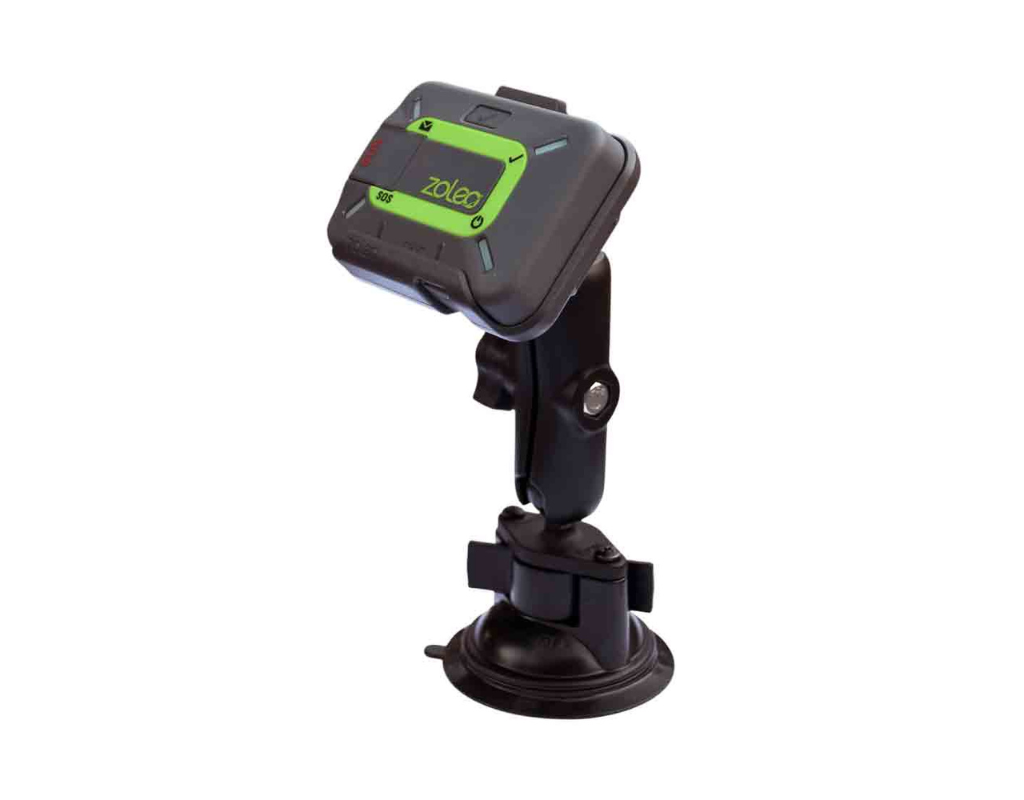

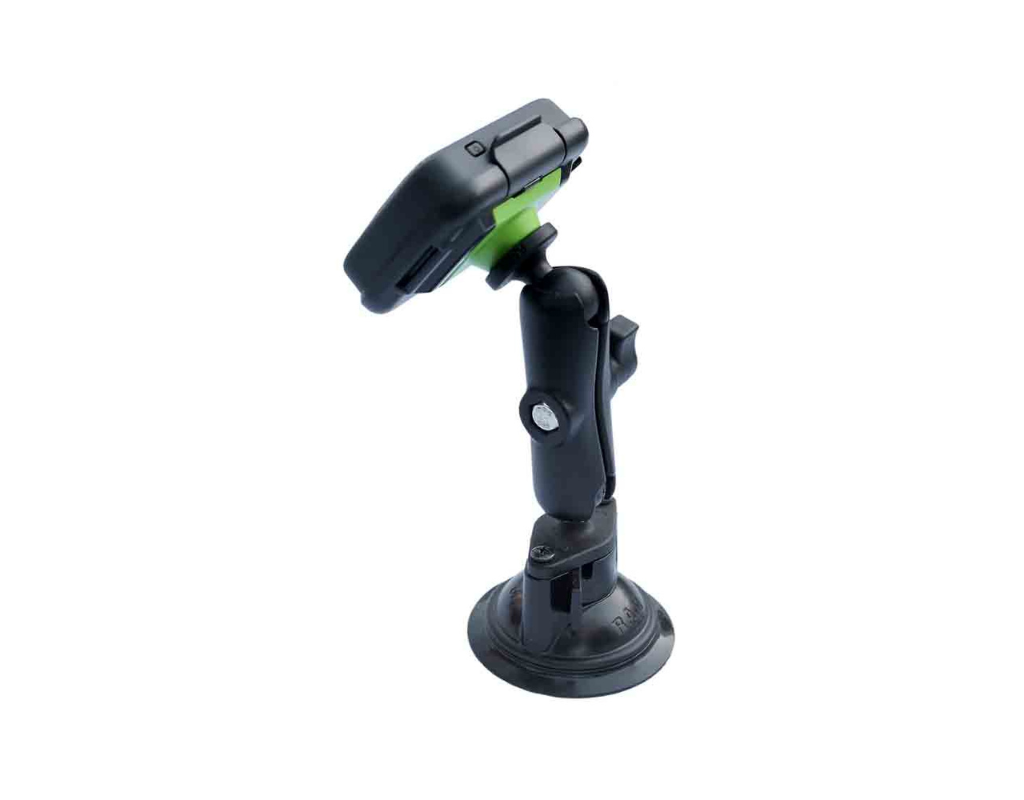

Whether you're on land or at sea, the Universal Mount Kit keeps your ZOLEO satellite communicator firmly in place and powered up. It includes the rugged ZOLEO Cradle Kit and adds a RAM® Twist-Lock™ suction cup mount, double‑socket adjustable arm, and USB car charger for seamless use in vehicles, boats, or any non‑porous surface. Crafted for flexibility and durability, it’s the ultimate mounting solution for reliable connectivity wherever your journey takes you
Key Features
- Strong suction hold on glass and smooth plastic
- Adjustable arm for optimal viewing angle
- Keeps your ZOLEO device charged while in transit
- Swappable inserts enable use on belts, straps, or camera mounts
RAM® Mount Components

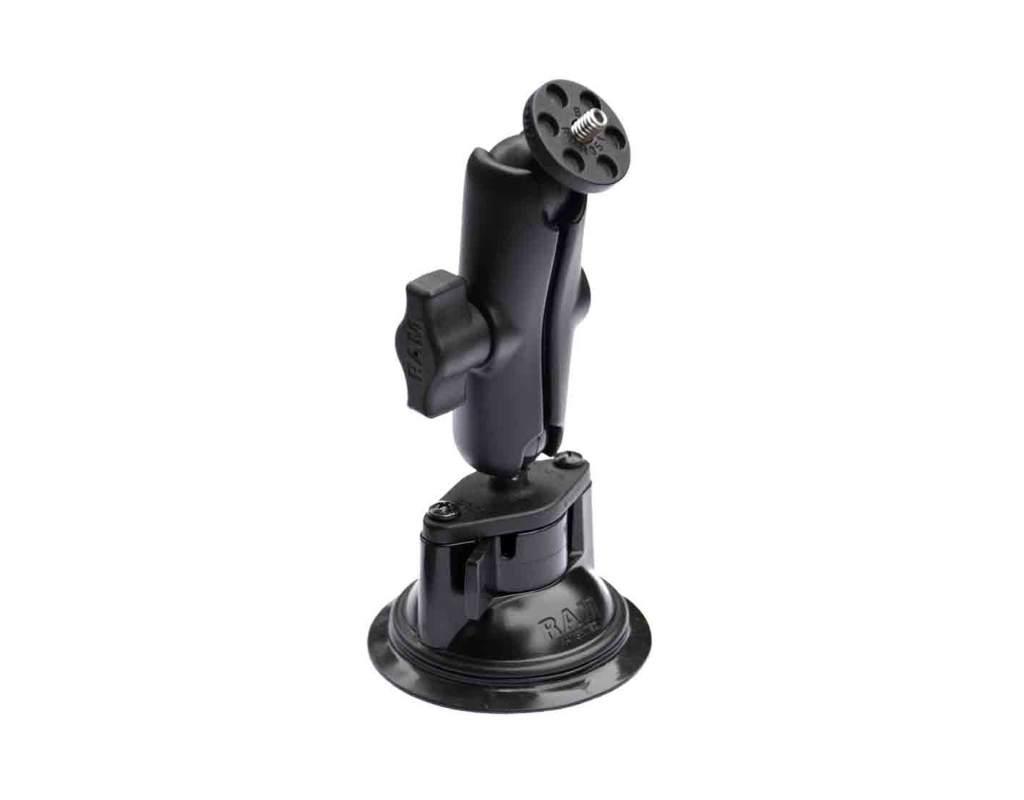

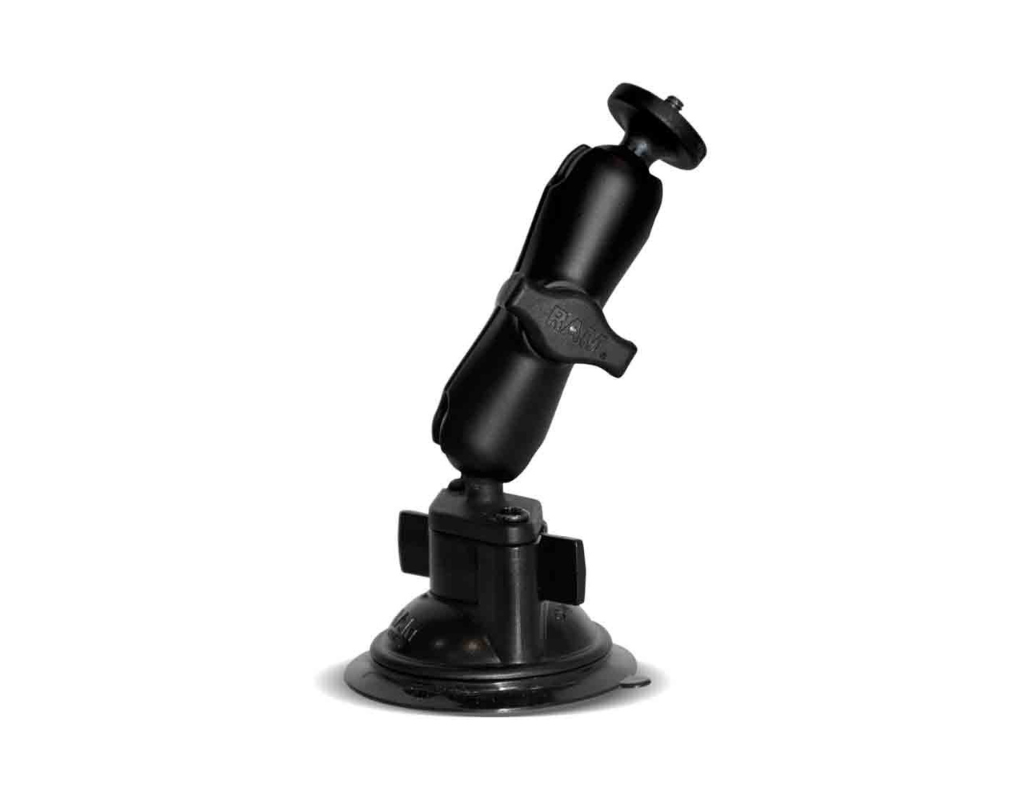

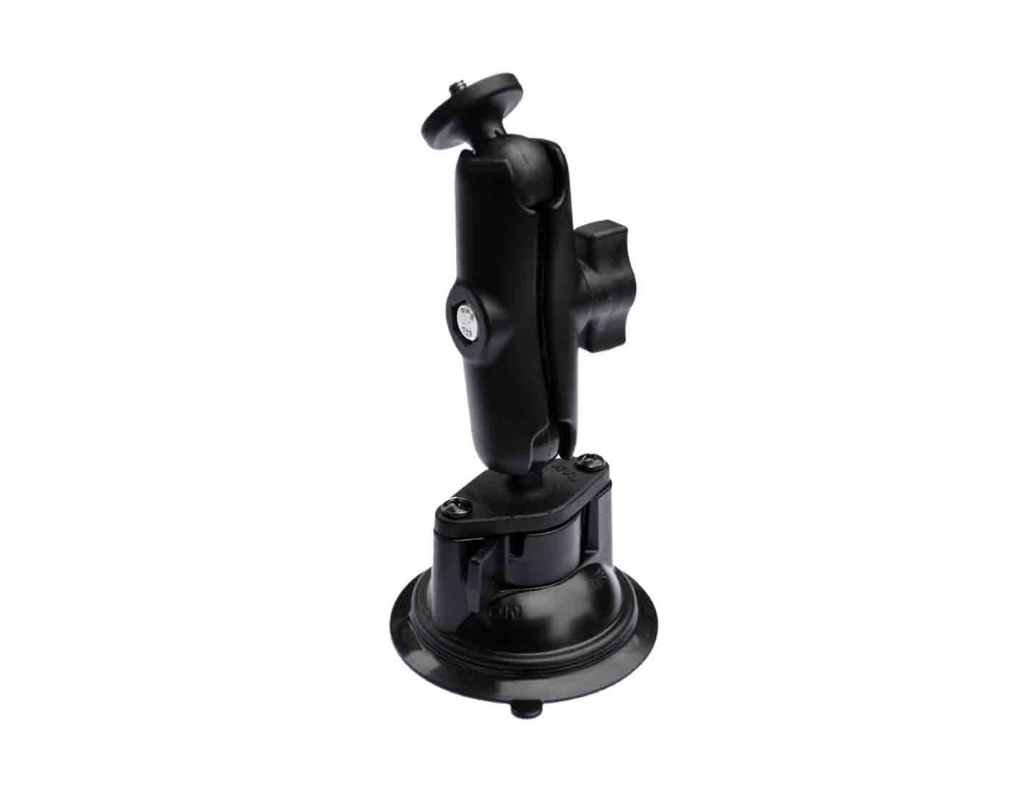

RAM® Twist-Lock™ Suction Cup Base with Ball
Strong suction mount ideal for windshields or smooth surfaces.
Diameter: 8.38 cm (3.3 in)
Weight: 118 g (4.16 oz)
Ball Size: B Size (2.54 cm / 1 in)
RAM Double Socket Arm
Connects and adjusts the angle between RAM components.
Length: 9.47 cm (3.73 in)
Weight: 140.6 g (4.96 oz)
RAM Ball Adapter with ¼"-20 Threaded Stud
Allows ZOLEO to connect with RAM or camera-style mounts.
Diameter: 63.5 mm (2.5 in)
Weight: 72.57 g (2.56 oz)
Stud: ¼”-20 steel
Ball Size: B Size (2.54 cm / 1 in)
DC Car Charger
Compact car charger with a single USB port to keep your ZOLEO powered.
Input: 12–24 V
Output: 5 V
Max Current: 2.5 A
USB Cable
Standard USB to Micro-USB cable for ZOLEO charging.
Length: 1.2 m (3.9 ft)
ZOLEO Cradle
Secures and protects your ZOLEO with a locking tab for insert swapping.
Dimensions: 74.5 x 95.0 x 27.8 mm
Weight: 3.0 g (0.10 oz)
Colour: Grey
Belt Clip Insert
Clips your ZOLEO securely onto a belt for hands-free use.
Weight: 2.0 g (0.07 oz)
Colour: Green
Strap Mount Insert
Thread a strap through to attach your ZOLEO flat to a pack or gear.
Fits straps up to: 25 mm (1 in)
Weight: 1.0 g (0.03 oz)
Colour: Green
Camera Mount Insert
Attaches ZOLEO to any universal ¼"-20 camera mount, including RAM arms.
Weight: 1.5 g (0.05 oz)
Thread Type: ¼"-20 UNC
Colour: Green
