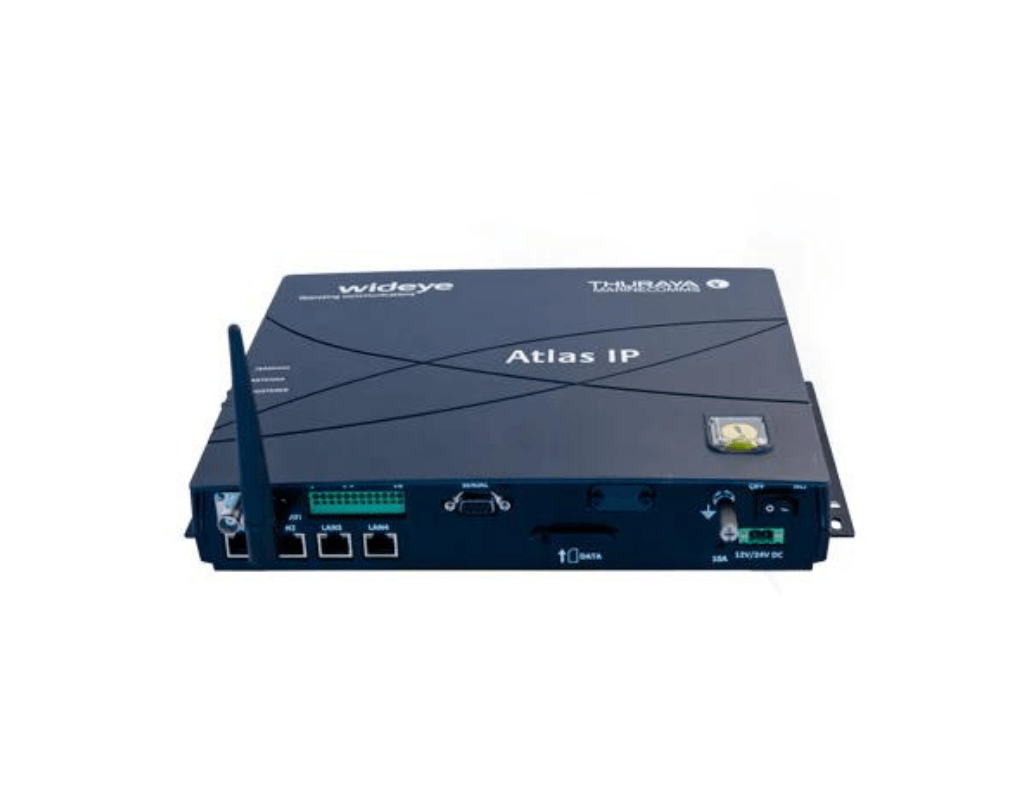

Thuraya IP Atlas Satellite Terminal

Thuraya IP Atlas Satellite Terminal

The Thuraya Atlas IP Satellite Internet Terminal has been designed specifically for maritime use, the Thuraya Atlas IP is the ideal satellite terminal for vessels with high data requirements. It is a compact feature rich terminal giving both circuit switched voice and data rates up to 444kbps.

Thuraya IP Atlas Satellite Terminal
£5,004.09

Description

Low cost feature rich terminal designed specifically for maritime use. The Thuraya Atlas IP offers Standard IP up to 444kbps and streaming IP up to 384kbps for the following applications:

  • Email
  • Internet
  • Video Conferencing
  • Chart Updates
  • Remote IT Support
  • Vessel Tracking
  • Event Based Monitoring
  • Voice & SMS
  • Crew Welfare
  • Video Surveillance

Thuraya Atlas IP is specifically designed to deliver added value to end-users seeking enhanced connectivity and greater operational efficiency on board ships. It provides merchant maritime, fishing, government and leisure users with a purpose-designed, fully-featured maritime satellite terminal that supports voice and broadband IP data connectivity at speeds of up to 444kbps.

Thuraya Atlas IP features improved power efficiency, a smaller form factor and greater versatility than rival maritime broadband products. The terminal features a single cable connection to the stabilized antenna, direct bulkhead mounting and built-in Wi-Fi.

It also includes a range of features designed to support improved communications functionality and enhance shipboard operations. These include port forwarding, which can automatically transfer data from shipboard equipment and devices in support of M2M reporting routines, an English/Chinese web interface, a built-in firewall, continuous GPS output and the ability to limit data sessions by time or volume.

The Thuraya Atlas IP package includes:

  • Modem (BDU)
  • AD321 antenna (ADU)
  • Voice handset
  • Antenna cable 25 meter
  • DC power & Ethernet cable
  • Mount installation kit
  • Wi-Fi Antenna
  • Installation Guide
  • User Manual CD
Read More
Read Less

Subscriptions

MBB On Demand Plans

  Access Value Economy
Activation $45.00 $0.00 $0.00
Monthly Fee - 1 Month Contract $42.50 $487.50 $810.00
Monthly Fee – 12 Month Contract n/a n/a $780.00
Monthly Fee – 24 Month Contract n/a n/a $735.00
Monthly Fee – 36 Month Contract n/a n/a $690.00
Monthly Allowance $42.50 $487.50 $780.00
Standard IP $4.80 $3.60 $1.80
Streaming IP (per minute) As per Streaming IP Table
Voice to Thuraya $0.60
Voice to Band 1 $0.60
Voice to Band 2 $5.35
Voice to Catch All $8.95
SMS $0.36



Unlimited Plans

  Ample Super 144k Unlimited 256k Unlimited 444k Unlimited
Maximum Connection Speed 444kbps 444kbps 144kbps 256kbps 444kbps
Monthly Fee - 1 Month Contract $1,380.00 $2,100.00 $2,640.00 $3,000.00 $3,360.00
Monthly Fee - 12 Month Contract $1,200.00 $1,680.00 $2,280.00 $2,640.00 $2,880.00
Monthly Fee - 24 Month Contract $1,080.00 $1,420.00 $1,800.00 $2,400.00 $2,680.00
Monthly Fee - 36 Month Contract $1,020.00 $1,380.00 $1,740.00 $2,100.00 $2,280.00
Fair Use Policy - FUP (Per Month) 1GB 5GB 15GB 20GB 30GB
Throttle Down Bandwidth 32kbps 32kbps 32kbps 32kbps 32kbps
Streaming IP (per minute) As per Streaming IP Table
Voice to Thuraya $0.60
Voice to Band 1 $0.60
Voice to Band 2 $5.35
Voice to Catch All $8.95
SMS $0.36



Data Rates

Data Bundles Price / Plan Ample Super 144k Unlimited 256k Unlimited 444k Unlimited
5 GB $780.00 Max. 444kbps Max. 444kbps Max. 144kbps Max. 256kbps Max. 444kbps
10 GB $1,320.00 Max. 444kbps Max. 444kbps Max. 144kbps Max. 256kbps Max. 444kbps
15 GB $1,740.00 Max. 444kbps Max. 444kbps Max. 144kbps Max. 256kbps Max. 444kbps

 For use with unlimited plans only when initial allowance has been used.  To add, please contact us.



Streaming Rates

Uplink/Downlink 16k 32k 64k 128k 256k
384k
16k $2.20 $2.98 $4.60 $7.10 $11.30 $15.38
32k $2.98 $3.15 $5.10 $7.65 $11.85 $15.90
64k $4.60 $5.10 $6.00 $9.21 $13.45 $17.50
128k $7.10 $7.62 $9.20 $10.45 $15.95 $20.00
256k $11.35 $11.85 $13.45 $15.95 $18.00 $24.25
384k* $15.40 $15.90 $17.50 $20.00 $24.25 $25.25

ALL PRICES EX VAT

*Fair Usage Applies of 15GB a Month, if this is passed bandwidth will be throttled
**Fair Usage Applies of 30GB a Month, if this is passed bandwidth will be throttled
Pro-rating of Static IP Address monthly fee is not applicable when activating or deactivating the static IP address.
Standard IP traffic shall be charged based on 100 Kilobytes data block.



Specification

Specifications:

  • BDU Technical & Environmental Specs: IP Rating IP31
  • Ambient temperature outside BDU:

    –Storage -40°C to +80°C
    –Operational -25°C to +55°C

  •

  • Vibration Operational
  • Random vibration of 1.05g rmsin each ofthree mutually perpendicular axes.
  • Relative Humidity Up to 95% at 40°C
Airtime:


Features:

  • Low cost feature rich terminal
  • Small and light weight
  • Easy installation
  • Long cable run
  • Built in: Wi-Fi, MAC filtering and port forwarding
  • Data up to 444kbps & Circuit Switch Voice
  • Built in firewall
  • Position reporting/ SMS tracking/ Geofencing
  • Multilingual web interface (English, Chinese)
  • 4 x RJ45 LAN ports and 1 with PoE
  • Restricted dialing
  • Port forwarding
  • Built in GPS with O/P on RS232 port
  • Wi-Fi Antenna
  • Alert Button

Coverage

Coverage
