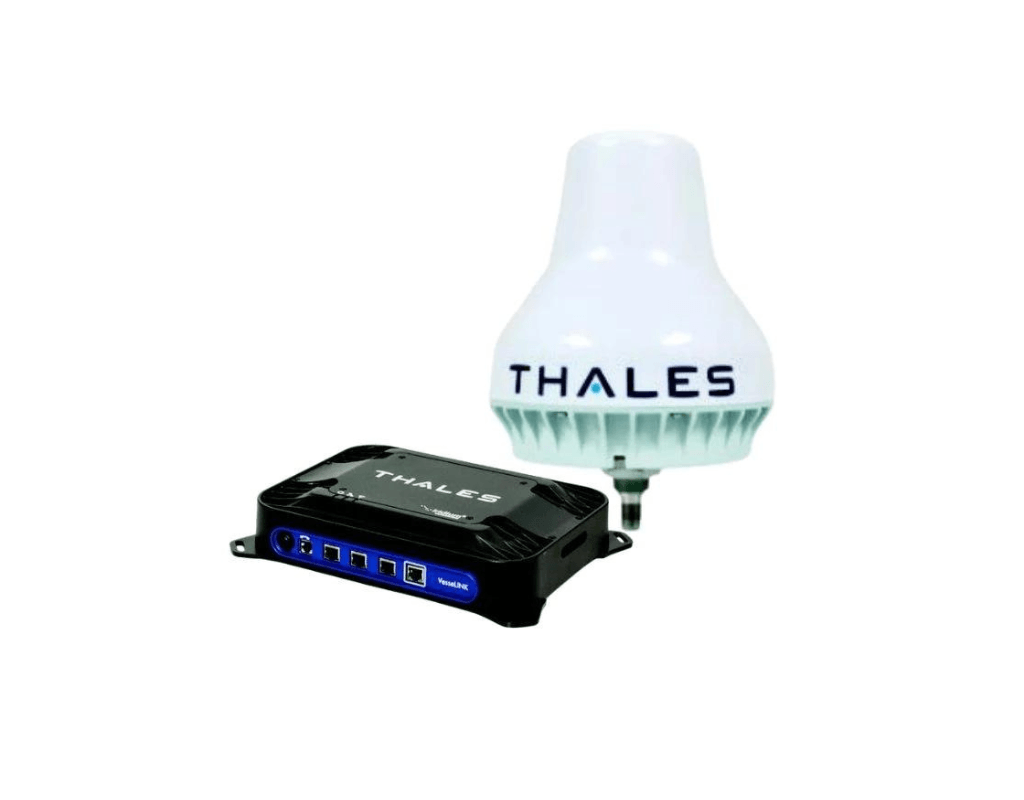

Thales Vesselink 200

The VesseLink 200 from Thales is the latest Iridium Certus® maritime terminal offering satellite connection anywhere in the world for basic voice, data and internet requirements. Offering upload/download speeds of up to 176 kbps.

Thales VesseLink 200 is the entry level Iridium Certus® satellite broadband terminal for use on leisure and commercial vessels of all kinds. Iridium's 66 low earth orbiting satellites provide voice and data services via the Iridium Certus® service no matter where you sail. Suitable for use as a VSAT backup or on smaller fishing, tug and leisure vessels.

176 kbps upload/download speeds enable you to make calls, send/receive emails and browse the web, improving operations and crew welfare.

VesseLink 200 features one of the most compact antennas on the market at just 12.5cm diameter/17cm height making it ideal for even the smallest of spaces.

Service	0MB	10MB	25MB	50MB	100MB	VSAT	Annual-600	Annual-1200
Minimum Duration (months)	1	1	1	3	3	3	12	12
Activation Fee	Free	Free	Free	Free	Free	Free	Free	Free
Monthly Fee	$63.00	$84.00	$176.00	$316.00	$562.50	$386.00	$4,245.00	$7,545.00
MB Included	0	10	25	50	100	300	600	1200
Out of Bundle per MB	$16.18	$9.14	$8.44	$7.04	$5.63	$1.51	$7.85	$6.28
Early Termination Fee	$0.00	$0.00	$0.00	$547.00	$937.50	$2,972.00	$0.00	$0.00
CALLING RATES
Voice to Fixed/Cellular	$0.43	$0.43	$0.43	$0.43	$0.43	$0.43	$0.43	$0.43
Voice to Iridium	$0.30	$0.30	$0.30	$0.30	$0.30	$0.30	$0.30	$0.30
Iridium Personal Mailbox Access	$0.30	$0.30	$0.30	$0.30	$0.30	$0.30	$0.30	$0.30
Voice to Other MSS Systems	$12.66	$12.66	$12.66	$12.66	$12.66	$12.66	$12.66	$12.66
Voice 2 Stage Dialling	$0.51	$0.51	$0.51	$0.51	$0.51	$0.51	$0.51	$0.51

Specification

Dimensions	Height: 2.3 inches (5.8 cm) Width: 12 inches (30.5 cm) Depth: 9 inches (22.9 cm)
Weight	Weight: 7.5 pounds (3.4 kg)
IP Rating	IP31
Power Options	Option 1: 10–32 VDC Option 2: AC/DC supply with 12 VDC (65 watt nominal/120 watt maximum)
Front Connectors	RJ-45 LAN (3) Class 2 PoE RJ-45 WAN (1) for cellular, VSAT and other IP connections, RJ-14 POTS (2 independent phone lines)
Rear Connectors	DC Power Input (10–32V) MIL-STD-1275D, DC Power Input (+12V Regulated), GPIO (RS-232, +12V out, Emergency, Radio Gateway, Discrete I/O), TNC — RF connection to Antenna, Wi-Fi — Reverse SMA, SIM card slot
Mechanical Vibration and Shock	MIL-STD-810G w/Change 1, Test Method 514.7, Category 4
Antenna Specifications
Size	5 inches dia. x 6.7 inches h (12.5 cm dia. x 17 cm h)
Weight	<0.7 kg/1.5 lbs
Power	Directly powered by the terminal at 24 VDC
IP Rating	IP67
Operating Temperature	-40 to +55° C
Mechanical Vibration and Shock	MIL-STD-810G w/Change 1, Test Method 514.7, Category 4
