Description

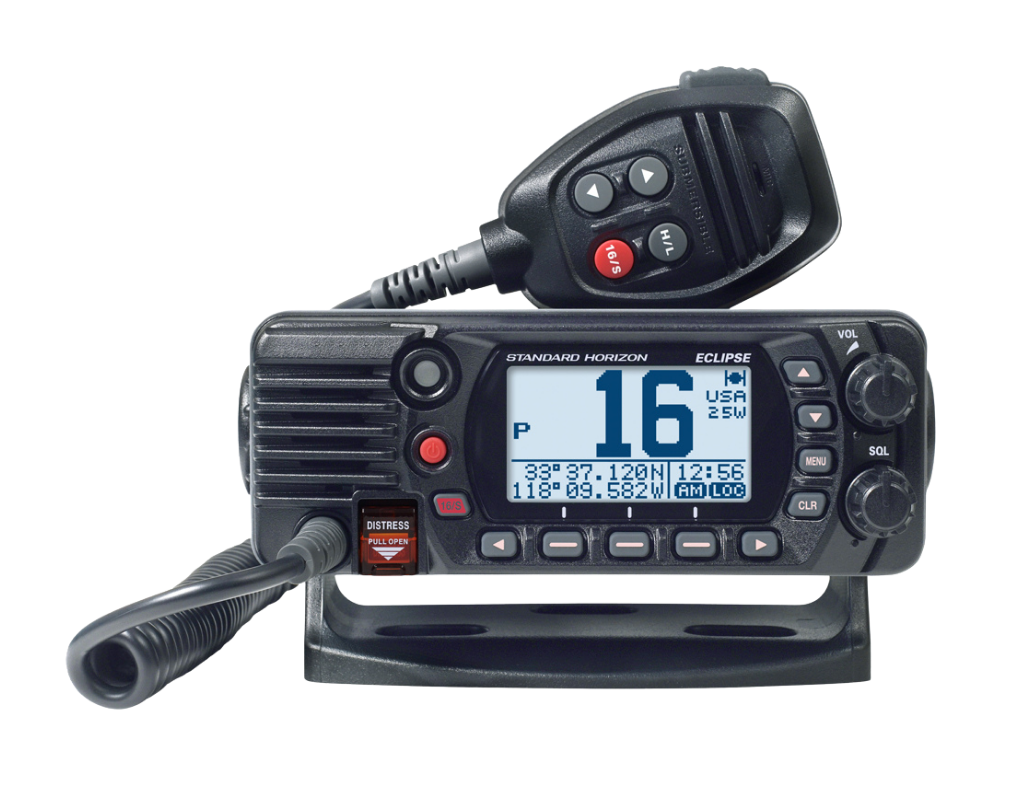

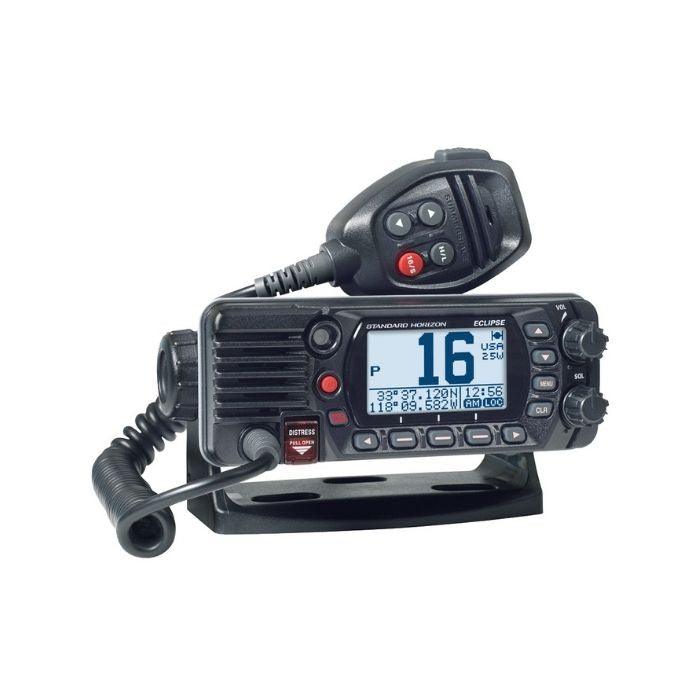

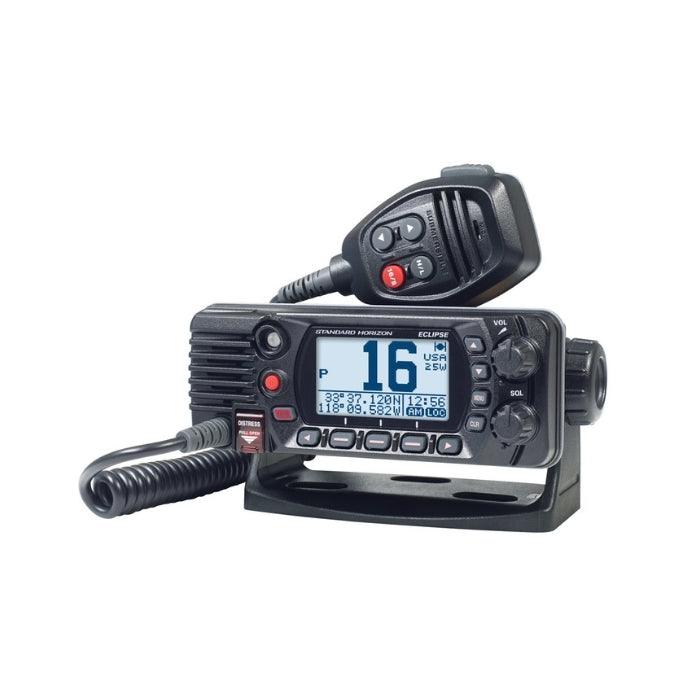

With its incredibly compact size and in-built GPS, the GX1400G makes installation a breeze. With an internal 66 Channel GPS built into the front panel, there is no need to hassle with wiring the radio to a GPS for DSC. Out of the box and ready to go, DSC calling, position sharing, waypoint navigation, navigation to DSC distress calls can all be performed with just a few simple steps.
ITU-R M493-13 Class D Digital Selective Calling
The GX1400 Eclipse Series is an ITU-R M493-13 Class D class VHF with a separate Channel 70 receiver, which allows DSC calls to be received even when listening to communications.
The DSC DISTRESS function when activated transmits a digital MAYDAY including vessel identification, Latitude / Longitude and time, to facilitate prompt response. Additional calls that can be made are Individual, Urgency, Safety, Position Report and Send.
New Dot Matrix Display
A new high-resolution dot-matrix display makes navigating the radios many features smooth and easy. Now with a new brighter backlight for better display contrast.
E2O Easy to Operate Menu System
Redesigned with the operator in mind, the new Easy to Operate menu system is now more intuitive than ever. Access all the menu functions and settings with just a few simple steps. DSC calling and DSC programming has never been easier.
Flush Mount Capability
Two mounting options are available. Bracket mount with the bracket and knobs included or use the optional MMB-84 to flush mount into a bulkhead.
Key Features
- Built-in 66 Channel WAAS GPS receiver
- Ultra Compact Class D Fixed Mount VHF Radio. Meets ITU-R M493-13 Class D DSC (Digital Selective Calling)
- Clear Voice noise cancelling speaker microphone with channel selection and 16/9 key
- E2O Easy to Operate Icon/Menu System
- Oversized Full dot matrix display (31 mm x 55 mm)
- DSC test call and Auto DSC channel change selection
- GPS position and Time Shown on a Full-dot Matrix Display
- NMEA In and Output Connections to a Compatible GPS Chart Plotter
- Programmable soft keys
- Automatically poll the GPS position of up to 6 ships using DSC
- Submersible IPX8 waterproof rating (1.5M or 4.92 feet for 30 minutes)
- All USA/International and Canadian Marine Channels
- Pre-set key used to recall up to 10 favourite channels
- Programmable Scan, Priority Scan, and Dual Watch
All USA/International and Canadian Marine Channels - ATIS Mode for European Inland Waterways
- 3 Year Waterproof Warranty
What's Included?
- Mounting Bracket, two Mounting Knobs, and hardware
- Power Cord with 6 Amp fuse and holder
- DSC Warning Sticker
- Owner’s Manual
- Warranty Card
Read More
Features
VHF
Specification
| Specification | |
| Dimensions | 15.6 x 6.1 x 10 cm |
| Weight | 800g |
| Transceiver Type | ITU-R M.493-14 (EU version) Class D DSC |
| Frequency Range | 156.025MHz – 161.600MHz (International) |
| Emission Type | 16K0G3E, 16K0G2B |
| Channel Spacing | 25kHz |
| Receiver Frequency Range | 156.050MHz – 163.275MHz |
| Current Consumption | 1.2A (RX) 0.3A (standby) TX: 5.0A/1.0A (25W/1W) |
| GPS Receiver Channels | 66 channels |
| GPS Sensitivity | Less than -147dBm |
| Time to first fix |
Typically less than 1 min (cold) Typically less than 5 sec (hot) |
| Geodetic Datum |
WGS84 |
