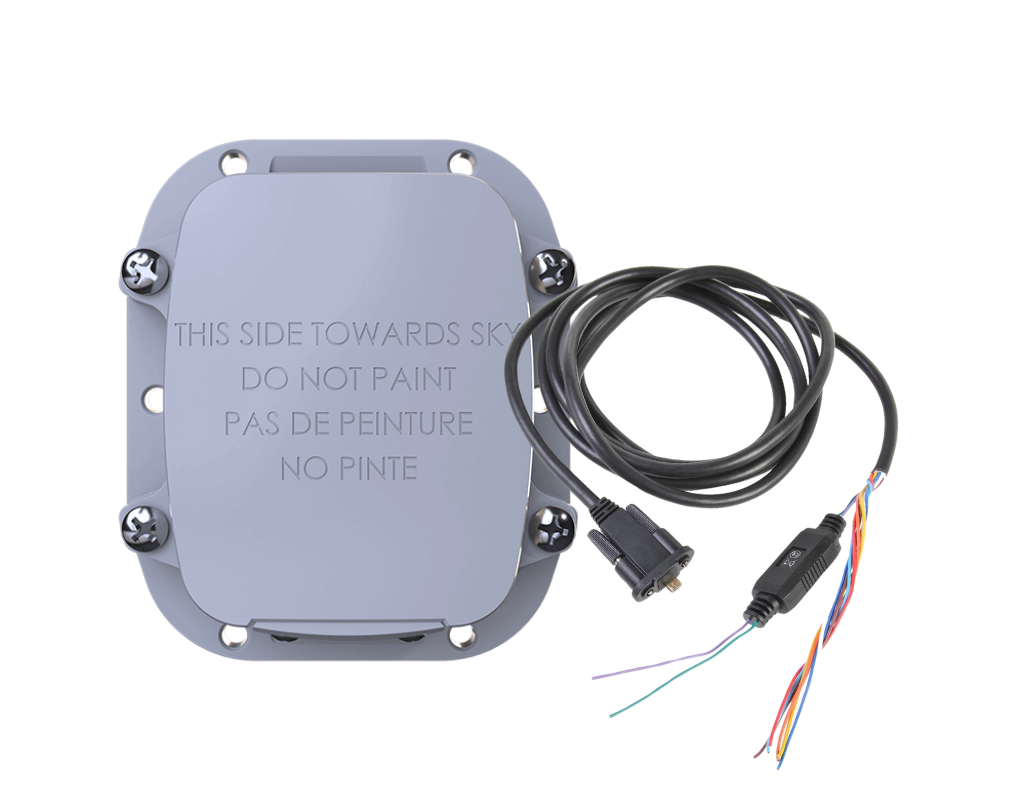

The SmartOne C Asset Tracker & 8–24V Input Cable Bundle offers a complete solution for monitoring and protecting your valuable assets via satellite. Designed for use on trailers, containers, and heavy equipment, the SmartOne C uses the Globalstar satellite network to provide reliable location data even in remote areas beyond cellular coverage.
With this bundle, you get the robust SmartOne C tracker along with the 8–24V regulated input cable, allowing you to power the device from external sources such as vehicle or machinery batteries. This significantly extends the operating life of the device and is perfect for assets with a constant or semi-constant power supply.
| SmartOne Plans |
Standby Plan |
Light Plan |
Entry Plan |
Heavy Plan |
Unlimited Plan |
| Minimum Term |
1 Month |
1 Month |
1 Month |
1 Month |
1 Month |
| Activation Fee |
$40.00 |
$40.00 |
$40.00 |
$40.00 |
$40.00 |
| Monthly Fee |
$5.00 |
$14.50 |
$17.50 |
$19.95 |
$30.00 |
| Inclusive Messages |
0 |
100 |
200 |
300 |
Unlimited |
| Additional Message Cost |
$0.25 |
$0.25 |
$0.15 |
$0.15 |
n/a |
| Mapping Plan Name |
Monthly Plan |
| GTCTrack Professional Mapping Plan |
$7.50 / per month |
ALL PRICES EX VAT
*No roll-over of unused messages is permitted from one billing period to the next.
*Subject to fair usage policy (minimum message transmission frequency every 30 mins)
| Satellite Network |
Globalstar |
| Satellite Technology |
Global LEO Satellite Network |
| Communication |
Globalstar Simplex Data |
| Positioning |
GPS |
| Dimensions |
68.6 × 82.6 × 25.4 mm (with brackets) |
| Weight |
102g (with batteries and mounting hardware) |
| Operating Temperature |
-30°C to +60°C |
| Extended Operational Range |
-40°C to +85°C* |
| Ingress Protection |
NEMA 4X / IP68 |
| External Power Input |
8–24V DC via Regulated Input Cable |
| Internal Battery Type |
4 × AAA 1.5V Lithium Batteries |
| Internal Battery Life |
1.5+ Years |
| Power Backup |
Internal Batteries Provide Backup if External Power is Lost |
| Motion Detection |
Integrated Accelerometer |
| Reporting Schedules |
Up to 12 Programmable Reporting Times |
| Operating Modes |
Interval or 24-Hour Operation |
| Movement Reporting |
Motion-Activated & Change-of-Location Reporting |
| Theft Alert |
Configurable Based on Distance Moved |
| Low Battery Alert |
Supported |
| Serial Communication |
TTL Serial I/O |
| External Sensor Support |
Supports Remote Passive & Smart Sensors |
| Environmental Standards |
SAE J1455 & MIL-STD-810 |
| Compliance |
RoHS Compliant |
| Bundle Includes |
SmartOne C Satellite Tracker & 8–24V Regulated Input Cable |
*The SmartOne C remains operational from -40°C to +85°C, although battery life
and RF performance may be reduced outside the standard operating temperature range.
SMARTONE SATELLITE TRACKER – MESSAGE DELIVERY OPTIONS AND FORMATS
Before we can activate your SmartOne Satellite Tracker you must select a GTC messaging plan and a message delivery route. The messaging plan allows your SmartOne tracker to transmit its GPS coordinates and other data to your selected destination.
View SmartOne Airtime and Messaging Plans.
In order to view the GPS coordinates and other information transmitted from the device on a mapping portal, or receive them at a server or by email, you must also select one of the delivery options below:
- GTCTrack
- Deliver raw data to corporate server
- Deliver decoded messages by email
- Deliver decoded messages to a URL
Click here to download full details of the above messaging options.
