MCD-MissionLINK Portable Satellite Internet Terminal
Description

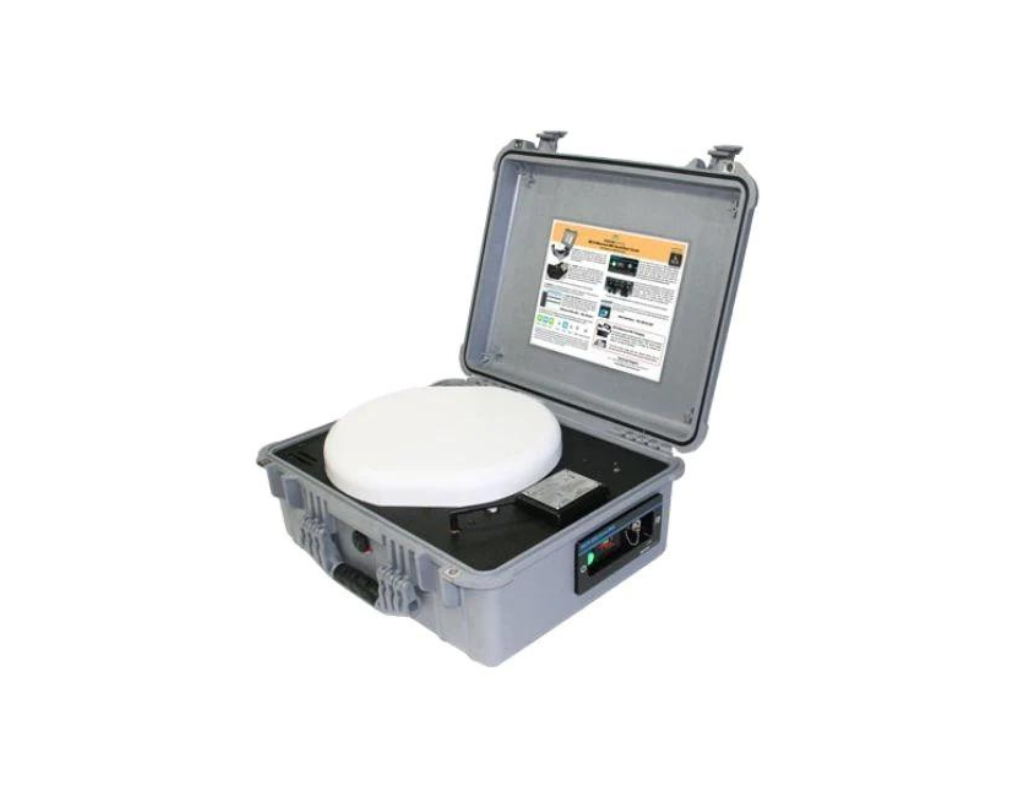

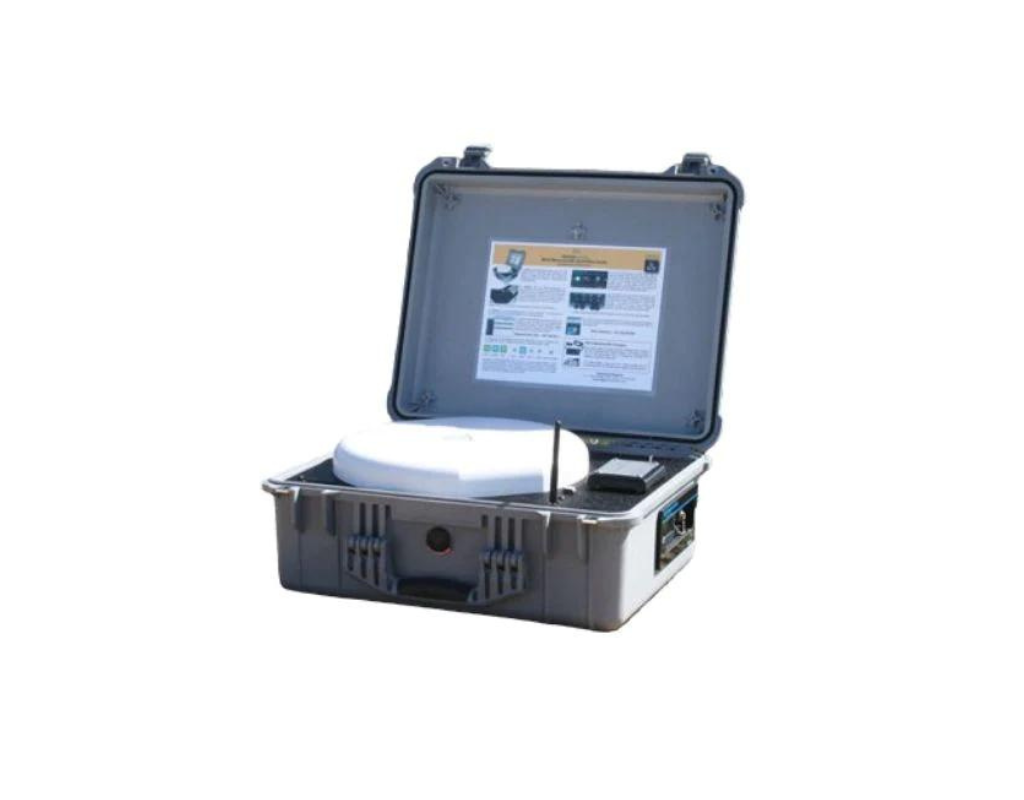

MCD-MissionLINK is designed for those who need fast data connections with quick and easy setup anywhere in the world. The ruggedized case houses the Iridium Certus® antenna and connection ports providing a remote office for journalists, aid workers, researchers, military, and many other remote workers in one easy-to-transport piece of equipment.
With download speeds of up to 700kbps and upload of 352kbps MCD-MissionLINK will not restrict you in what kind of data you use whether it be email, internet, file transfer, or live streaming.
How it works
The MCD-MissionLink couldn't be easier to use and requires no specialist training. Place the closed case on the ground or on a moving vehicle in the open sky and power on. The user does not need to point the equipment, as long as the case has a clear line of sight to the sky a signal will be obtained.
The MCD-MissionLINK will provide a wireless hotspot with a range of up to 300 metres and allow up to 12 simultaneous wireless connections. For wired connections, there is 1 x phone port, 2 x LAN ports and 1 x WAN port.
Various power options are available - the internal NiMH battery (no flight restrictions) with an operating life of up to 5 hours can be used or plug into a AC power supply or DC 12v vehicle port for continuous operation or charging.
Rugged Design

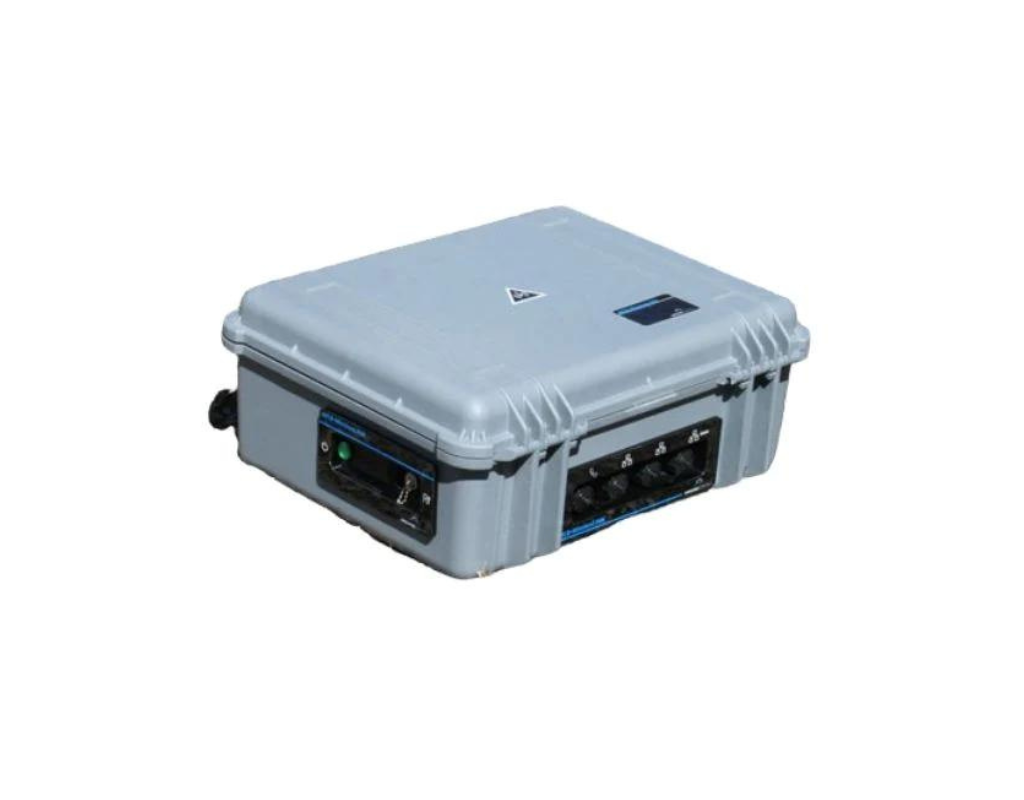

MCD-MissionLINK is housed in a watertight, reinforced plastic Pelican case offering a IP66 rating.
MCD-MissionLINK Package Includes
- MCD-MissionLINK Flyaway Portable Case
- AC/DC power supply (110/240 VAC)
- Standard analog phone
- Mini DC Inverter
- AC plugs for US, UK, EU, AU, China, N. Europe
- Ethernet cable - 10' feet / 3 metres
- Compass
- USB flash drive with user manuals
- Carry bag to hold accessories
Read More
Subscriptions
Iridium Certus Land Service Plans
| Subscription Services | 0MB | 10MB | 30MB | 150MB | 500MB | 2GB | 5GB | 10GB |
| Activation Fee | FREE | FREE | FREE | FREE | FREE | FREE | FREE | FREE |
| Minimum Term | 3 months | 3 months | 3 months | 3 months | 3 months | 3 months | 3 months | 3 months |
| Monthly Fee | $48.44 | $64.49 | $105.00 | $403.75 | $1,130.31 | $1,615.00 | $2,260.00 | $3,068.75 |
| Inc. MB/Month | 0MB | 10MB | 30MB | 150MB | 500MB | 2,000MB | 5,000MB | 10,000MB |
| Out of Bundle per MB | $5.44 | $5.25 | $4.50 | $3.69 | $2.88 | $2.06 | $1.38 | $1.06 |
| Early Termination Fee | $290.63 | $387.50 | $161.56 | $605.63 | $1,614.38 | $2,421.56 | $3,390.31 | $4,600.94 |
ALL PRICES EX VAT
Please check for Iridium Certus Land Plans for full details and calling charges.
Shared plans are also available.
Voice calls priced per minute. Minimum billable increments apply.
Specification
| Specification | |
| Dimensions | 52.5 x 43.7 x 21.3 cm |
| Weight | 16.5 kg |
| Data Speed | 700 Kbps download. 352 Kbps upload - Firmware upgrade available as of February 25, 2020 |
| Battery Life | 5 hours average |
| AC/DC Power Supply | Input 110 to 240 Volts AC. Output 28 Volts DC @ 8 Amps. Total cable length is 12' (3.6 meters) |
| Internal Battery Type | NiMH (Nickel-Metal Hydride) - FAA Flight Approved |
| Operating Temperatures | -30°C to +55°C / -22°F to +131°F |
| IP Rating | IP66 |
| Warranty | 2 years |
| Concurrent Wireless Users | Up to 12 wireless devices |
| Wireless Range | Tested at 300 meters (1,000 feet) with good wireless signal (-78 dBm signal) to standard laptop computer. |
| LAN | 2 RJ-45 Ethernet Ports with PoE - Watertight connector (Power over Ethernet Class 2) |
| WAN | 1 RJ-45 Passthrough failover parameters set in the web interface - Watertight connector. |
| Phone | 1 RJ-14 phone jack for 2 phone lines - Watertight connector. VoIP Phone may also connect via Ethernet for a total of 3 phone lines. |
Coverage
Coverage
https://cdn.shopify.com/s/files/1/0618/0057/9296/files/iridium_image.png?v=1689579036
