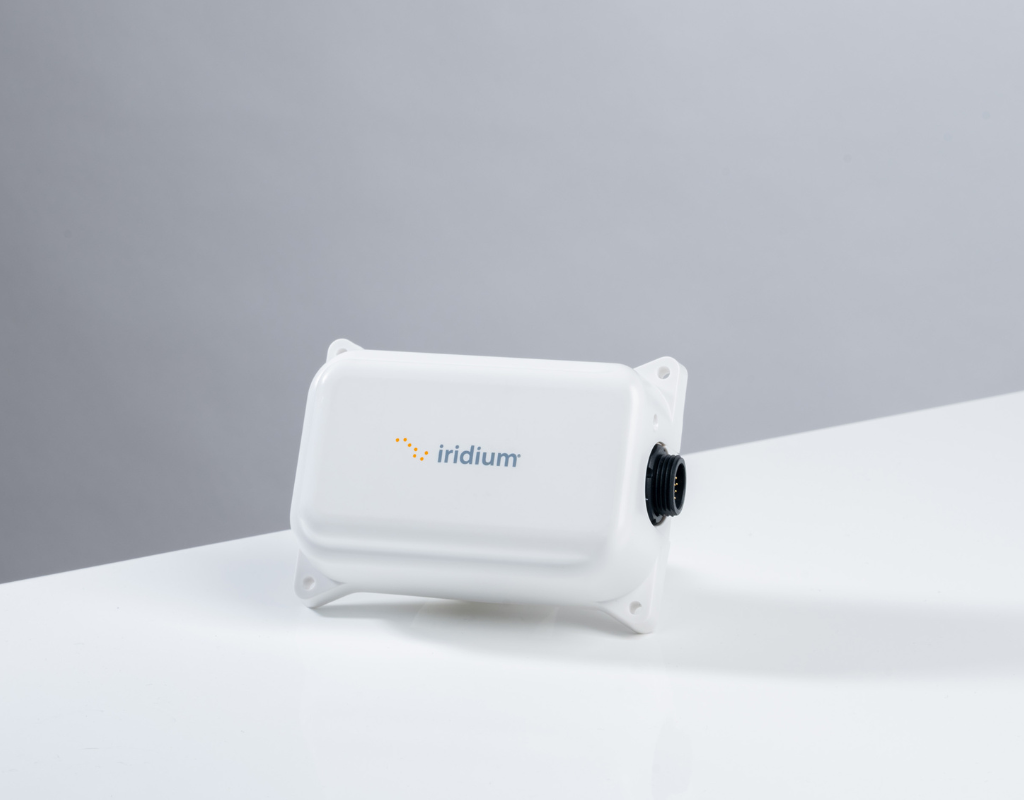

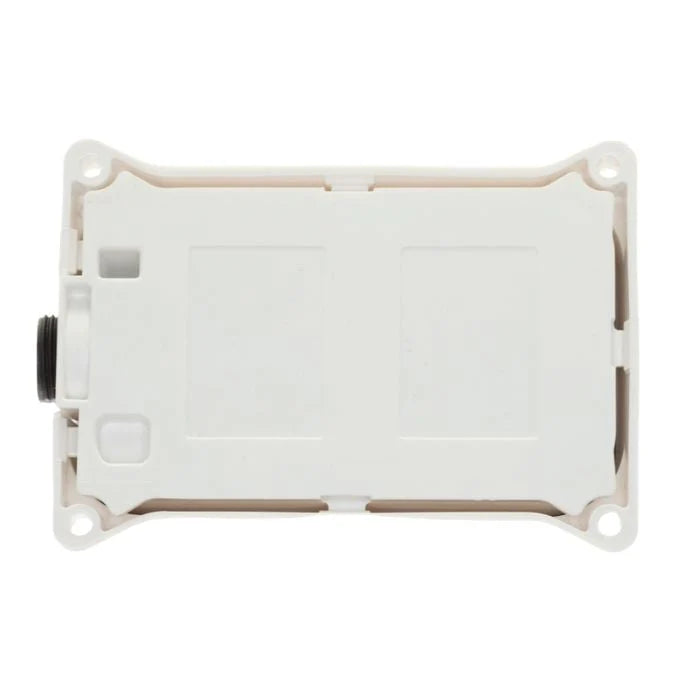

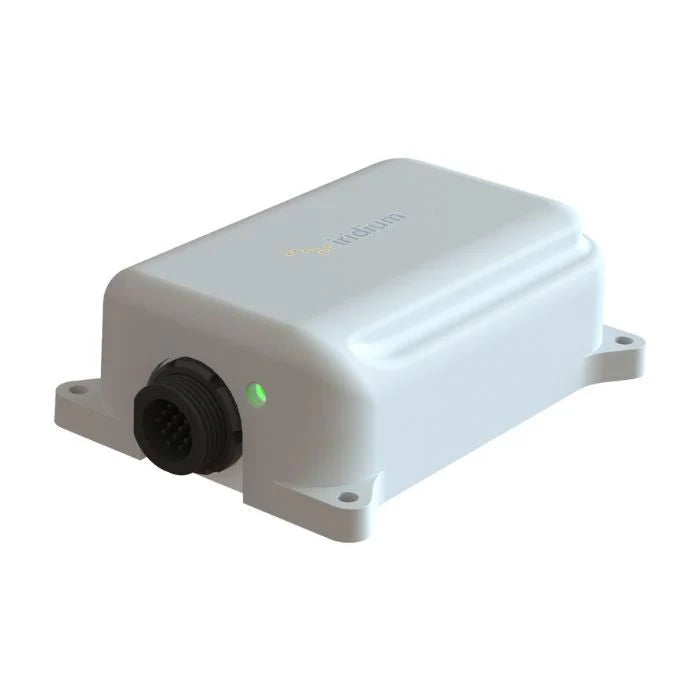

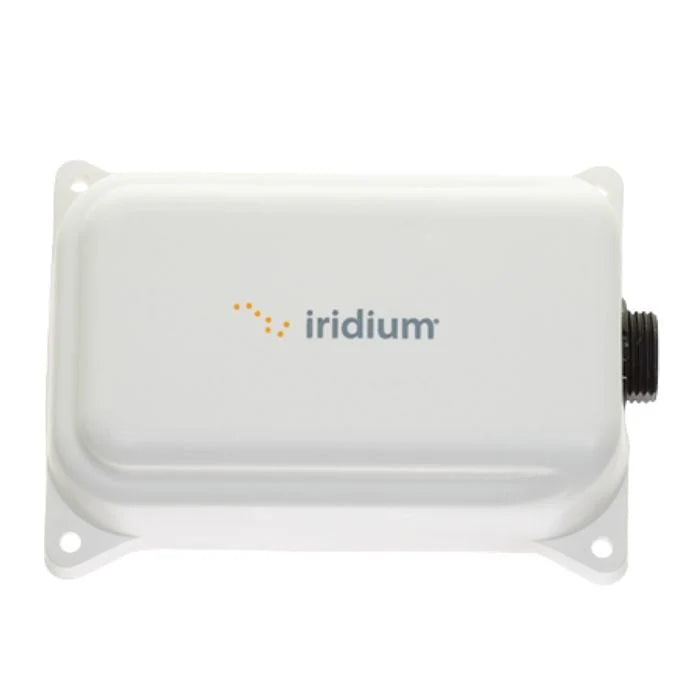

Iridium Edge® Pro

Iridium Edge® Pro

£0.00

(Ex. VAT)

The Iridium Edge® Pro is a standalone device for precise asset tracking which can be deployed immediately as it combines existing terrestrial solutions with high-tech IoT satellite communication to instantly enable the user to track any asset no matter where in the world it is.

Iridium Edge® Pro

£0.00

(Ex. VAT)

Description

Iridium is one of the world leaders in cutting-edge satellite communication technology. With global reach, Iridium allows individuals and companies to keep track of their assets anywhere on the planet in real-time. With the advent of the Iridium Edge® Pro, the company has truly excelled in providing a highly reliable, durable and affordable product for both GPS fleet management and accurate asset tracking.



The Iridium Edge® Pro is a standalone device for precise asset tracking which can be deployed immediately as it combines existing terrestrial solutions with high-tech IoT satellite communication to instantly enable the user to track any asset no matter where in the world it is. It functions with patented Short Burst Data technology which provides a real-time update on the location of any asset or vehicle backed up with the stable worldwide network of Iridium satellites which work on a low-latency.



Designed with customisation in mind, the new Iridium Edge® Pro is able to be programmed to your exact specifications, giving it an advantage over the previous Iridium Edge® model which requires you to integrate it with another IoT system. Create your own end-user applications and monitor remotely, track assets in transit, provide security from a distance, and manage your fleets or vessels wherever they are.



Iridium Edge® Pro Key Features:

  • A standalone product for monitoring assets and fleets remotely
  • Small, lightweight and compact design
  • Multiple connections possible
  • Access to the global Iridium satellite network
  • Highly programmable with integrated Java software
  • Integration for both sensors and equipment Includes simulators for GPS, as well as I/Os
  • Built-in features such as event logging and position reporting
  • Allows geofencing to be enabled for fleet management
  • Compatible with other cellular devices Can be programmed remotely
  • Flexible installation
  • Comes with temperature sensors and accelerometer
  • Operates in harsh conditions -40C to 70C
  • Resistant against salt spray, splashes and humidity
  • Tough against vibrations and drops



Technical Specifications

Weighing in at just 200g with small dimensions of just 127cm x 90cm, this is the perfect device to install discreetly into your vehicles or attach to an asset for enhanced security. You can connect it directly to other machines with the 18 pin female mating connector, CANBus, USB or Bluetooth, there are also 2 analog and 2 digital inputs and outputs for maximum compatibility.



It has low 32V power needs, which is enough to cover all of the built-in capabilities such as internal sensors, a temperature sensor and an accelerometer.



GTCTrack

Iridium Edge® Pro is compatible with our GTCTrack Mapping Portal - a cloud based application providing real time location updates, advanced alerts, reporting and user management.  GTCTrack is compatible with numerous satellite and cellular GPS-enabled devices allowing you to view all your assets in one easy to use system.



Find out more about GTCTrack >

Find out more about Short Burst Data Plans

Read More
Read Less

Features

TRACKING

Automated tracking is available on this device meaning contacts back home can follow your journey or you can monitor the movement of your assets.

Subscriptions

Service Basic 10k
Activation Fee Free Free
Monthly Fee $6.00 $16.95
Minimum Term 1 Month 1 Month
Inclusive Bytes 1,000 Bytes 10,000 Bytes
Minimum Billable Message 10 Bytes 10 Bytes
Overage Fees
Overage Fee 1-10 KB (per KB) $1.99 $0.39
Overage Fee 10-25 KB (per KB) $0.99 $0.29
Overage Fee 25+ KB (per KB) $0.69 $0.19
Monthly Suspension Fee $2.50 $2.50



Specification

Specification

Mechanical Specifications

Weight

200 g

Dimensions 127 X 90 x 41 mm (L x W x H)
Mating Connector 18 Pin Female (Right Angle & Straight Through Options)
Connector Cover Included for Additional Protection (Optional)

Power Supply

Input Voltage 32V
Load Dump SAE J1455 Section 4.13.2.2.1

Interfaces

BLE, CANBus, & USB

(2) x Analog Input or Digital Input

(2) x Digital Input or Output

RS-485 & RS-232

Internal Sensors

Accelerometer

Temperature Sensor

GPS/GLONASS/Galileo/Beidou

Voltage Input

Environmental Specifications

Storage Temperature -40 C to 85 C
Operating Temperature -40 C to 70 C
Operational Vibration SAE J1455 Section 4.10
Shock 1 m Drop Test as per SAE J1455
Salt Spray AE J1455 Section 4.3.3.1
Low Pressure Storage 30,000 Feet
Humidity SAE J1455 Section 4.2.3
Ingress Protection IP67
Splash Testing SAE J1455 Section 4.4.3.2
Steam and Pressure Washing SAE J1455 Section 4.5.3

Regulatory Standards and Compliance

US (FCC), EU (CE MARK), CANADA(IC), ROHS

IEC 60945

C1D2 Groups A, B, C, D Certification to ANSI/ISA 12.12.01-2011

Coverage

Coverage
