Iridium AD-510-1 Passive Antenna

Iridium AD-510-1 Passive Antenna

£276.00

(Ex. VAT)

Part Number: AD-510-1

This Iridium Passive Antenna is designed to work with Iridium satellite phones and the Iridium GO! Wi-Fi hotspot.

Iridium AD-510-1 Passive Antenna

£276.00

(Ex. VAT)

Description

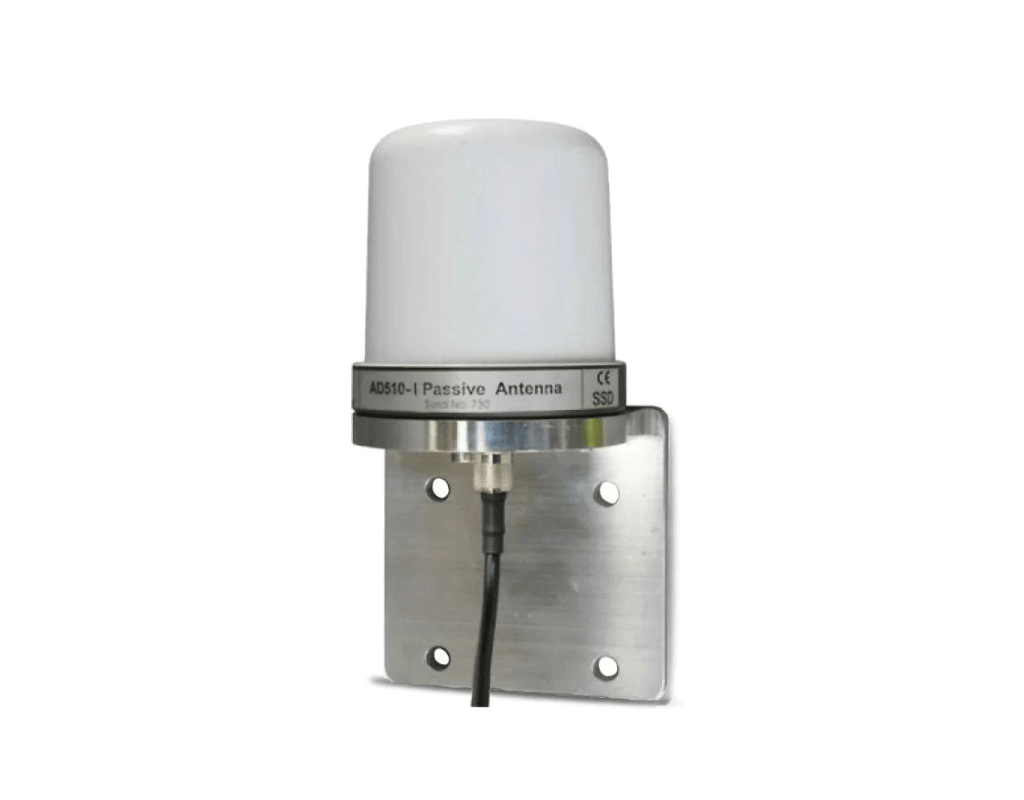

Provides superior performance with all the Iridium series satellite phones for external mounting in harsh or marine environments.

What is Included?

  • Iridium Passive Antenna (AD510-1)
  • Antenna Mounting Kit (AD510-2)

Key Features:

Compatible with Iridium devices

This passive antenna is designed to work with Iridium satellite phones and Iridium GO! Wi-fi Hotspot. Passive Antenna utilises the Iridium satellite network.

Heavy Duty Mounting Bracket

The bracket (AD510-2) provided with each antenna can be attached to vertical or horizontal spars up to 60mm in diameter using the U bolts provided. Connection to the Iridium handset is made with an appropriate coaxial cable via a TNC on the underside of the antenna.

Secure Design

The radomes are 4 mm GRP/polyester mix whilst the base is milled from hard anodised aluminium, giving an attractive green finish, which is mechanically resilient and resistant to corrosion.

Read More
Read Less

Specification

General Specifications
Dimensions 10cm x 8.7cm
Weight 1kg
Operating Temperature -40°C to +85°C
Mounting Vertical or horizontal spars up to 60mm in diameter
Connector TNC female.
Frequency 1610.00-1630.00Mhz
