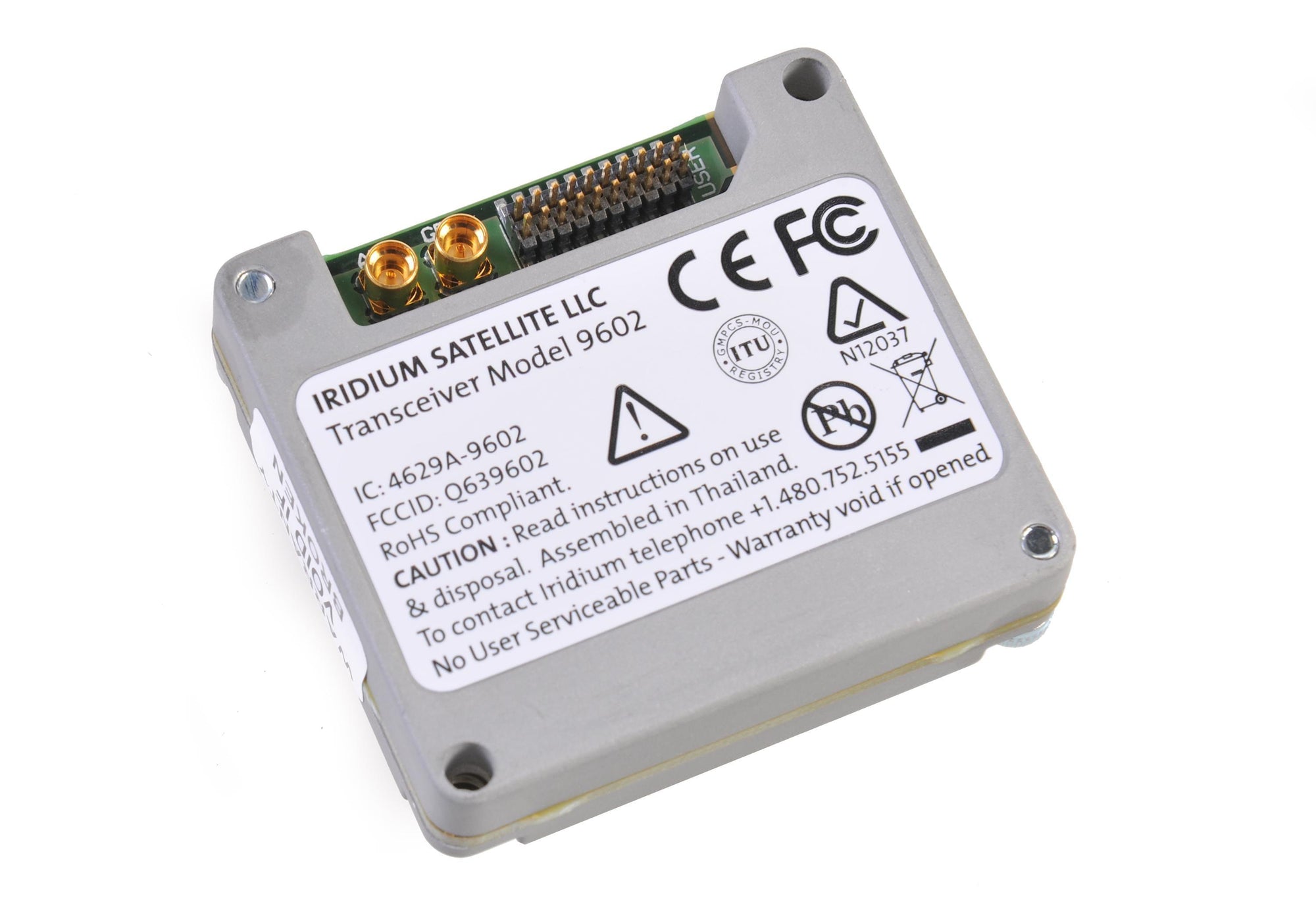

Iridium 9602-N Short Burst Data Transceiver

Name: Iridium Iridium 9602-N Short Burst Data Transceiver - Default Title
Brand: Iridium
SKU: 665878756291
Price: 123.02 GBP
Availability: InStock

Part Number: SBDG2M2101

£147.62 (inc. VAT)
£123.02 (ex. VAT)

The Iridium 9602 modem allows developers to take advantage of the global Iridium Short Burst Data (SBD) service.

Free UK Shipping Over £100*

In-House Expert Advice

30 Day Guarantee

12 Month Warranty

*Free UK shipping applies to orders over £100. Restrictions will apply based on delivery post code.

The Iridium Short Burst Data (SBD) 9602 is a single-board transceiver provided as a "black box" and all device interfaces are provided by a single multi-pin interface connector in addition to the antenna connector. The unit is intended to be used as a transceiver module to be fitted within another host system.

The 9602 SBD is designed to be integrated into wireless data applications with other host systems hardware and software.

Key Features

Single board transceiver
Small form factor
No SIM card
RoHS compliant
Duplexing Method TDD (Time Domain Duplex)
Input/Output Impedance 50
Multiplexing Method TDMA/FDMA

Service	SBD 0	SBD 12	SBD 17	SBD 30
Activation Fee	FREE	$40.00	$40.00	$40.00
Monthly Fee	$17.00	$20.00	$25.00	$42.50
Minimum Term	1 Month	1 Month	1 Month	1 Month
Suspended Monthly Fee	$2.50	$2.50	$2.50	$2.50
Minimum Billable Message Size	30 Bytes	10 Bytes	10 Bytes	10 Bytes
Inclusive Bytes per Month	0 Bytes	12,000 Bytes	17,000 Bytes	30,000 Bytes
Overage (per 1,000 Bytes)	$1.50	$1.50	$1.75	$1.50
SBD Registration/Mailbox Check	$0.05	$0.05	$0.05	$0.05

ALL PRICES EX VAT

General Specifications
Dimensions	4.1 x 4.5 x 1.3cm
Weight	30g
Operating Temperature	-40°c to +85°c
Operating Humidity	75% RH
Storage Temperature	-40°c to +85°c
Frequency Range	1616 MHz to 1626.5 MHz

DC Power Input
Idle current (average)	45mA
Idle current (peak)	195mA
Transmit current (peak)	1.5A
Transmit current (average)	190 mA
Receive current (peak)	195mA
Receive current (average)	45mA
SBD Message transfer - average current	190mA
SBD Message transfer - average power	1.0W
