Intellian C700 Iridium Certus® Terminal

Intellian C700 Iridium Certus® Terminal

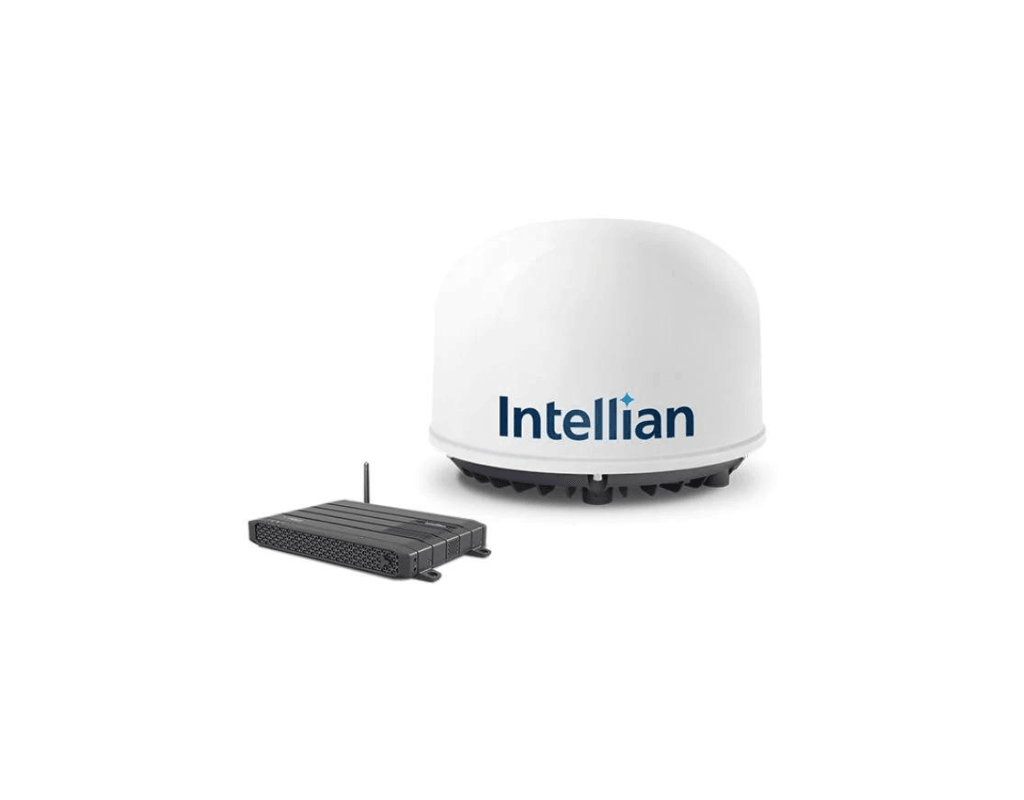

The Intellian C700 is the latest marine satellite internet terminal to make use of Iridium's new high speed data service, Iridium Certus®.

Stay connected anywhere in the world, with the Intellian C700 you have the speed to use the terminal as a standalone communication system or it is ideal as a VSAT backup.

Intellian C700 Iridium Certus® Terminal
£4,870.48

Description

Using Iridium's global satellite network, the Intellian C700 offers pole to pole coverage for high speed satellite internet and voice access.  Following Iridium's approval to offer GMDSS services by the IMSO in Jan 2020, the C700 will offer GMDSS compatibility when the service becomes available.



The 12 element patch antenna offers excellent performance during any ship motion with up to 352 kbps upload and 704 kbps download speed - while the C700 is ideal as a VSAT backup, it is also powerful enough to use as a standalone communications system.  Streaming IP is also available.



Connectivity

The compact antenna connects by a single coaxial cable to the below deck unit offering Ethernet/WAN, phone and WiFi connectivity.  Three high quality, low latency phone lines can be used simultaneously while the Short Burst Data feature provides global satellite tracking capabilities.



Enhanced Cyber Security

  • Built in firewall
  • HTTPS. TLS certificate
  • Data Encryption



Advanced Voice Solution

  • Soft PABX & LTE interface capability
  • 3 HD Quality voice lines
  • Up to 16 SIP Phones
  • Up to 2 analog telephones
  • 3G/4G/LTE WAN Port



Package excludes antenna cable.

Read More
Read Less

Features

TRACKING

VOICE

HIGH SPEED DATA

Subscriptions

Subscription Services 0MB 50MB 100MB 250MB 1GB 5GB 10GB VSAT COMPANION 300MB
Activation Fee FREE FREE FREE FREE FREE FREE FREE FREE
Minimum Term 3 months 3 months 3 months 3 months 3 months 3 months 3 months 3 months
Monthly Fee $121.25 $363.44 $645.94 $976.88 $1,433.75 $1,775.94 $2,583.13 $403.75
Inc. MB/Month 0MB 50MB 100MB 250MB 1,000MB 5,000MB 10,000MB 300MB
Out of Bundle per MB $16.19 $8.13 $6.50 $4.25 $1.25 $0.94 $1.38 $1.63
Early Termination Fee $161.56 $565.31 $968.75 $1,453.13 $2,179.69 $2,583.13 $2,583.13 $3,099.69



IRIDIUM CERTUS® MARINE (DYNAMIC SHARED) SERVICE PLANS

Subscription Services 100MB 250MB 1GB 5GB 10GB VSAT 300MB
Activation Fee FREE FREE FREE FREE FREE FREE
Minimum Term - 5 min. 12 months 12 months 12 months 12 months 12 months 12 months
Member Minimum Duration 3 months 3 months 3 months 3 months 3 months 3 months
Monthly Fee $710.63 $1,074.38 $1,577.19 $1,953.44 $2,841.56 $443.95
Inc. MB/Month 100MB 250MB 1000MB 5000MB 10000MB 300MB
Out of Bundle per MB $8.94 $4.63 $1.38 $1.00 $1.56 $1.79
Early Termination Fee $968.75 $1,453.13 $2,179.69

$2,583.13

$2,583.13 $3,099.69

ALL PRICES EX VAT

Please check the contracts for full terms and conditions.

Voice calls priced per minute. Minimum billable increments apply.

Specification

Specification

Iridium Services

Voice 3 simultaneous HD voice lines
Background IP Uplink: up to 352 kbps. Downlink: up to 704 kbps.
Streaming IP Up to 256 kbps
Short Burst Data Yes - suitable for tracking.

Physical

Radome Dimension 370 x 270mm (14.5 x 11.0 inch)
Antenna Weight 6.5kg / 14.3 lb
BDU Dimensions 280 x 183.5 x 41 mm / 11 x 7.2 x 1.45 inches
BDU Weight 2kg / 4.4 lb

Power

DC Input

10 ~ 32 V DC

Power (max)

120 W

RF/Antenna

TX Frequency 1616 ~ 1626 MHz
RX Frequency 1616 ~ 1626.5 MHz
Antenna Gain HGA 2 Class
Antenna Connectors TNC female (ADU) – TNC female (BDU)
GNSS GPS, GLONAS, Galileo, BeiDou
WiFi 802.11 b/g

Approval

Type Approval CE/RED, FCC
Environmental Conditions
Operating Temperature Range -25℃ ~ + 55℃ (ADU)
-15℃ ~ + 55℃ (BDU)
Operating Humidity Range More than 95%
Water Ingress Protection ADU: IP56, BDU: IP31
Shock & Vibration Shock:
IEC60068-2-27 (operation),
IEC60721-3-6 Class 6M3 (survival)
Vibration:
IEC60945 (operation),
IEC60721-3-6 Class 6M3 (survival

I/O

Ethernet/WAN RJ45 x 4
Phone RJ14 x 1
Wireless 1 WiFi (SMA RP)
I/O 10 pin GPIO
Etc SIM, Reset, On/Off, Ground

Coverage

Coverage
