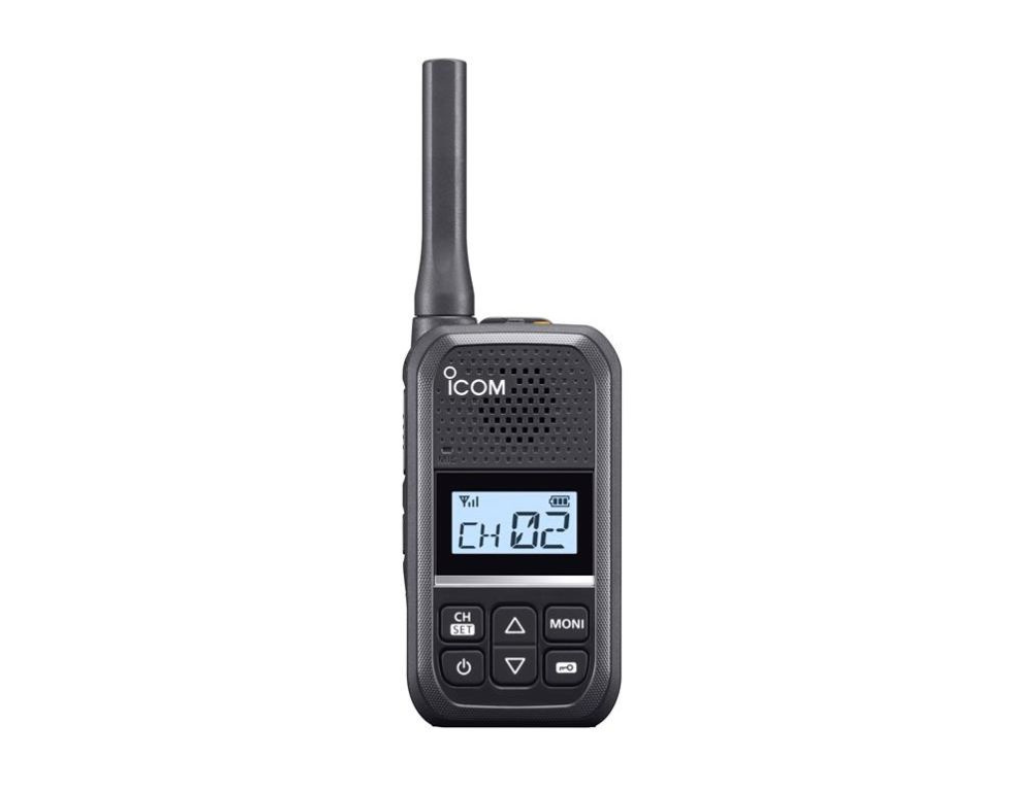

ICOM IC-U20SR

Load image into Gallery viewer, ICOM IC-U20SR

ICOM IC-U20SR

£109.98

The ergonomic, licence-free, IC-U20SR two-way radio from Icom is ultra-compact, ideal for commercial envionments from hospitality and events to restaurants and retail. It meets MIL-STD810G standards and is dust and water resistant. With simple operation and a 21-hour battery life, it delivers crisp and clear audio from a robust polycarbonate housing.

- +

Quantity must be 1 or more

Description

The IC-U20SR from Icom is a license-free, stylish, and ultra-compact PMR446 two-way radio. It is ergonomic so is very comfortable in the palm of your hand, and built to IP54 dust and water resistance, meeting MIL-STD810G standards. The IC-U20SR combines intuitive features that make for simple operation, as well as a long battery life and clear audio for optimised experience, all housed within a lightweight yet durable polycarbonate case.

Ultra-Compact, Smart Design
The IC-U20SR measures only 94 mm in height, so it takes up little space in your pocket or on your belt. It is also very lightweight, at just 156g. Ideal for people who work in busy, noisy environments such as retail or hospitality.

Crystal Clear LCD
The IC-U20SR has a large, high-definition LCD screen with reinforced glass that clearly displays which channel you are on, the device's remaining battery life, and your chosen settings.

Dust & Water Resistant
Waterproof to IP54 and approved by military certification MIL-STD810-G, the Icom IC-U20SR is protected against dust, water splashes and shock to withstand heavy use.

Up to 21 Hours of Operation with Supplied Battery
The supplied BP-304A, 2350 mAh Lithium-Ion battery can provide up to 21-hour long operation so that it can be used continuously during day and night work shifts without recharging.

The ICOM IC-U20SR is an ideal, all-round handheld two-way radio, which can be used in any of the following applications:

Retail
Hospitality
Events
Education
Outdoor Pursuits
Construction
Warehouse
Factory

PDF Download

ICOM IC-U20SR User Guide

Specification

Frequency coverage	446.00625 MHz ~ 446.19375 MHz
Number of channels	16 channels
Output power	0.5W
Receiver sensitivity	20 dB SINAD N : –118 dBm typ.
Type of emission	8K50F3E (12.5 kHz)
Audio power output	Internal Speaker: 600 mW typ. @5 % distortion with 4 Ω External Speaker: 150 mW typ. @5 % distortion with 8 Ω
Antenna impedance	50 Ω
Power supply voltage	3.6 V DC nominal
Current drain	Receive Max. Audio: 0.8 A Max.Transmit: 1.0 A Max.
Dimensions	H 156.0 × W 50.0 × D 26.7 mm incl. antenna H 94.0 × W 50.0 × D 26.7 mm excl. antenna
Weight	157 g (including BP-304A battery pack)
