Description
Key Features:
Compact and Lightweight Design

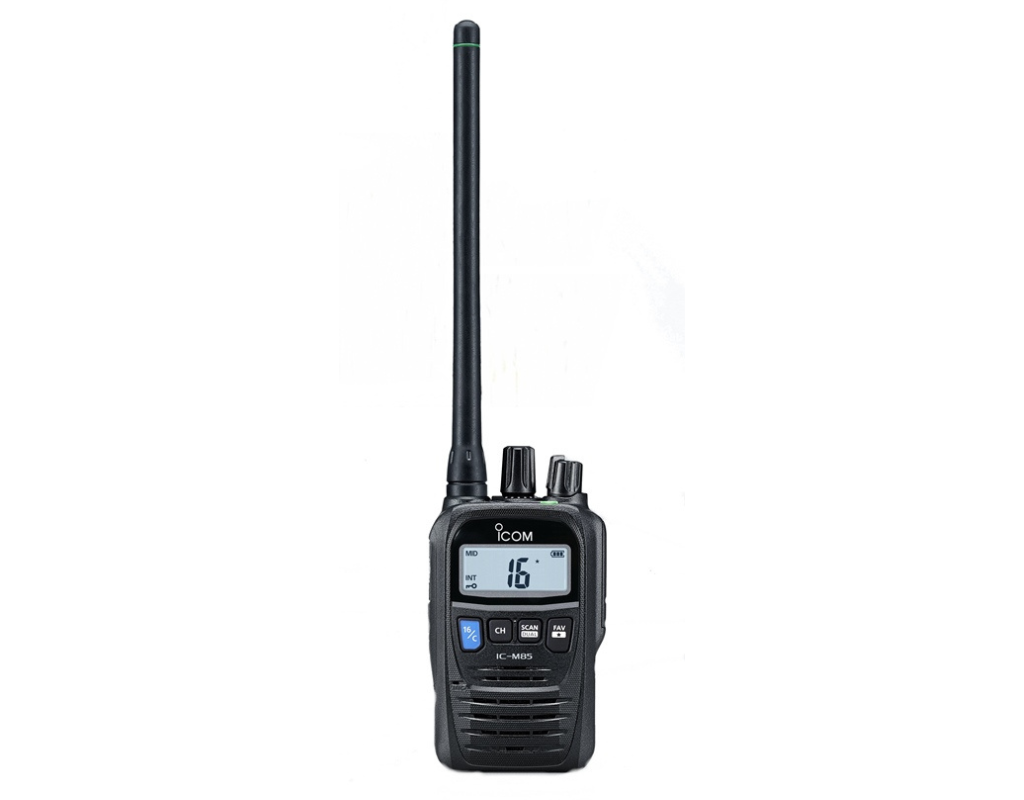

The IC-M85E is the most compact (W×H×D: 56 × 92 × 29 mm) and lightweight (weight: 246 g (with BP-290, FA-SC58V and MBB-3)) commercial grade marine and land mobile hybrid radio in the world.
Covering 136–174 MHz PMR Frequency
In addition to VHF marine channels, the IC-M85E covers 136–174 MHz PMR channels. Up to 100 programmable channels are available for PMR use. Each channel is programmable with CTCSS and DTCS tone.
Automated Emergency Alarm
The IC-M85E has three emergency related functions: the MOB Alarm, Man Down and Lone Worker functions. If one of these functions are activated, the radio automatically makes an emergency alarm.
Instant Operation with Multi-Function Button
Channel group changing (Marine PMR) or the scrambler function ON/OFF can be assigned in the multi-function button on the top panel. The Key lock function can be activated by holding the button.
700 mW Powerful Audio
Despite its compact body, the IC-M85E delivers 700 mW of loud audio. Clear communications is vital in noisy environments.
Private Conversation
The radio has a built-in Voice Scrambler and provides private communication between stations (32-code, compatible with UT-112 voice scrambler unit).
IP67 and MIL-STD Rugged Construction
The IC-M85E is built durable to endure 1 m submersion for 30 minutes and dust-tight protection. The radio also passes MIL-STD-810 specifications.
Read More
PDF Download
Specification
| General Specifications | |
| Dimensions | 9.2 x 5.6 x 2.9cm |
| Weight | 246g |
| Operating Temperature |
–15 °C to +55 °C (Marine Channels) –25 °C to +55 °C (PMR Channels) |
| IP Rating | IP67 (Dust-tight and waterproof protection) |
| Frequency Coverage (Marine Channels) |
156.000-161.450MHz (Tx) 156.000-163.425MHz (Rx) |
| Frequency Coverage (PMR Channels) |
136.000-174.000 MHz |
| Output Power |
5/3/1 W |
| Audio Output Power | 700mW typical |
