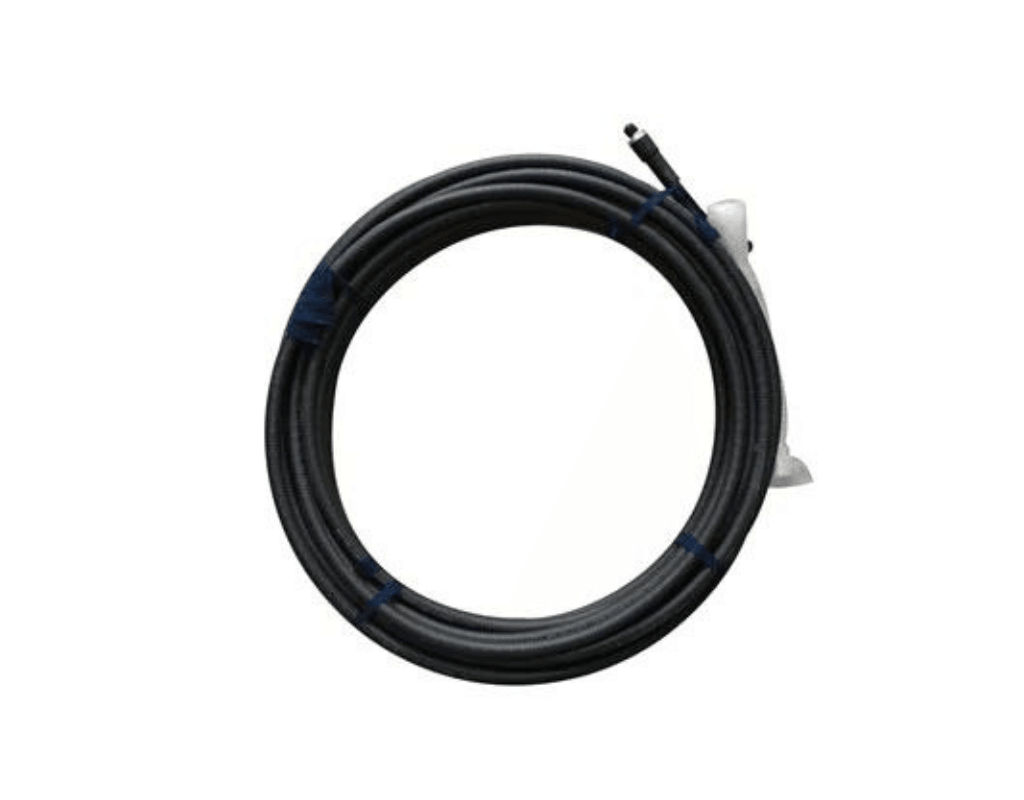

Beam 30m Iridium Passive Antenna Cable Kit
Description
What is Included?
- 2 x 0.5m Ultra-flex (LMR240)
- 1 x 29m (LCF7850J).
Key Features:
- Provides the ability to run long distance installations for larger marine vessels and fixed installations
- Pre-terminated with TNC male connectors.
Read More
Specification
| General Specifications | |
| Total Kit Weight | 5.39Kg / 11.88Ibs |
| Main Cable | |
| Length | 29m / 95.14ft |
| External Diameter | 2.78 cm / 1.2" |
| Bend Radius | 12 cm / 4.72" |
| Bend Radius - Repeated | 25 cm / 9.84" |
| Operating Temperature | -50°C to +85°C (-58°F to +185°F) |
| Fly Lead (Passive) | |
| Length | 0.5m / 1.64ft |
| External Diameter | 0.61 cm / 0.24" |
| Bend Radius | 1.91 cm / 0.75" |
| Bend Radius - Repeated | 6.35 cm / 2.5" |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
