Description

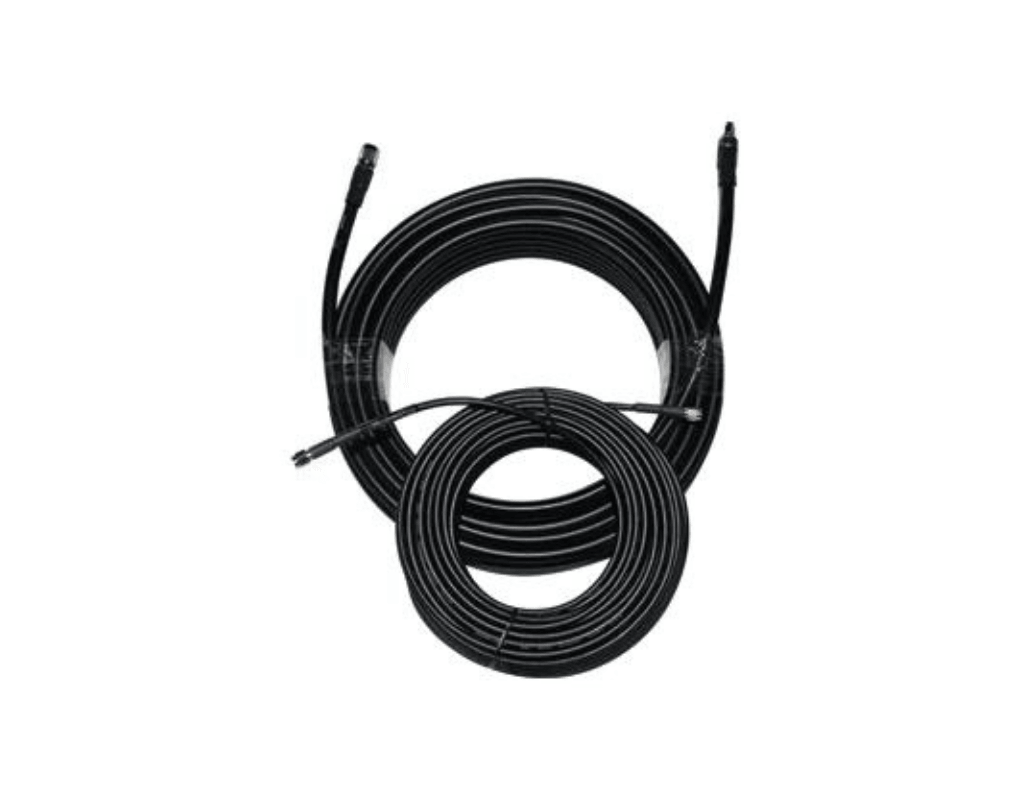

The BEAM IsatDock/Terra SMA/TNC (ISD937) antenna cable kit 20m (65.6ft) provides a flexible installation option for fixed installations with the ISD700 antenna.
What is Included?
- Inmarsat Antenna Cable (20m)
- GPS Antenna Cable(20m)
Key Features
- Designed for use in fixed intallations.
- Pre-terminated with SMA/TNC connectors.
- Can only be used with ISD700 antenna.
*Note: ONLY for use with the ISD700 Passive Antenna.
Specification
General Specifications | |
Cable Kit Length | 20m / 65.6 ft |
Cable Kit Weight | 2.8 kg / 6.17 lbs |
Inmarsat Cable | |
SAT Cable Length | Active 13m SAT TNC(m)-SMA(m) |
Connector Diameter |
1.45 cm / 0.57" |
Cable Diameter |
1.03 cm / 0.41" |
Thickest Diameter |
1.45 cm / 0.57" |
Bend Radius Single |
2.54 cm / 1" |
Bend Radius Repeat |
10.16 cm / 4" |
GPS Cable | |
GPS Cable Length | Active 20m GPS SMA(m)-SMA(m) |
Connector Diameter | 9.23 cm / 0.36" |
Cable Diameter | 0.5 cm / 0.19" |
Thickest Diameter | 0.92 cm / 0.36" |
Bend Radius Single | 1.4 cm / 0.55" |
Bend Radius Repeat | 5.1 cm / 2.01" |
