ACR AISLink CA2 Class A AIS Transceiver

ACR AISLink CA2 Class A AIS Transceiver

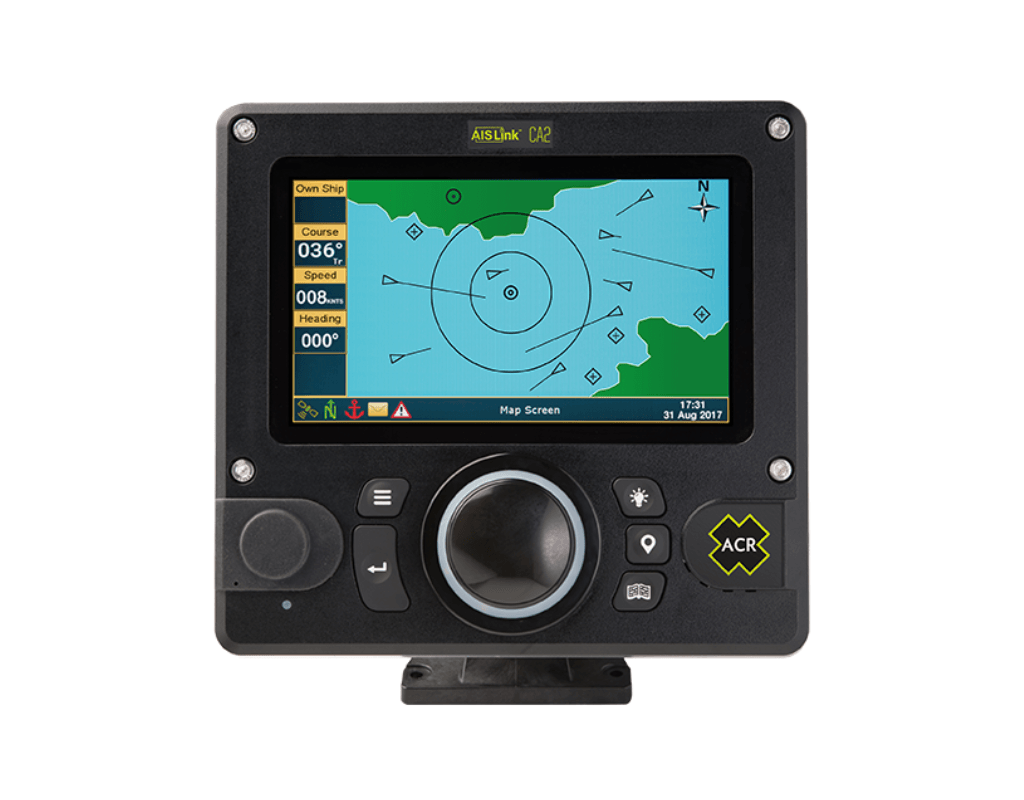

The AISLink CA2 Automatic Identification System (AIS) Transceiver is a fully compliant Class A transceiver designed to complement the existing range of (AIS) maritime safety equipment from ACR Electronics.

ACR AISLink CA2 Class A AIS Transceiver


The CA2 harnesses the advanced power and technology that ACR products are known for in order to successfully help collision avoidance at sea.

The AIS functionality is intuitive and easy to use. It ensures safety alerts are sent and received by the user with minimal effort, and the device itself can be used in conjunction with other AIS Man Overboard devices including the Ocean Signal MOB1.

The CA2 has a built-in, 99-channel GPS receiver, and can automatically record a plethora of data sets including location, speed over ground, and course over ground. Meanwhile the static and voyage-related data such as MMSI, call sign and name, type of ship, destination, ETA etc. is easily programmed into the AIS transponder via a user-friendly menu interface.

The CA2 unit ensures minimal use of bridge space and its surface or free-standing mounting options allow for easy installation into almost any position or location. It also includes multiple connectivity options including WiFi, USB port, serial, and Pilot plug.

Features and Benefits:

  • Compact single-unit solution with full-colour display
  • Colour coastline map
  • Compliant with EU Inland Waterways standard
  • Radar and Target list displays
  • Selectable chart orientation
  • Incoming message & alarm display
  • Alarm output for AIS SART, MOB and EPIRB detection
  • Supplied with GPS antenna
  • Continuous self-testing with alarm notifications
  • Waterproof to IPX7
  • Isolated alarm relay contacts
  • Programmable for up to 30 MOB units
Read More
Read Less



Transmit Power 12.5/1 Watts
Frequency Range 156.025 – 162.025 MHz
AIS Modulation GMSK: BT 0.4
DSC Modulation FSK: Mod Index 2
AIS RX1 & RX2 156.025 – 162.025 MHz
DSC 156.525 MHz
Sensitivity -107 dBm for 20% packet error rate (PER)
GPS Receiver Sensitivity High Sensitivity
GPS Receiver Channels 99 (acquisition) / 33 (tracking)
Dimensions 8.5” x 8.3” x 5.9” (214 x 211 x 150 mm)
Nominal Viewing Distance 20” (0.5m)
Temperature Range 5°F to 131°F (-15°C to +55°C)
Waterproof IPx7 (1 meter for 30 minutes)
Equipment Category (Display Unit) Protected
Equipment Category (GPS Antenna) Exposed
Supply Voltage Range 9.6V to 31.2V
Compliance Standards IEC61993-2, IEC60945, IEC62288¹
Serial Ports IEC61162-1 & -2, 3 Rx only, 3 Rx/Tx / Pilot Plug / USB²
Blue Switch Input Isolated
Alarm Relay Normally Open / Normally Closed: 2A max.
