Description
The LPB modem delivers exceptional low power consumption (< 1 W idle) for off-the-grid installations. Both modem and antenna are IP-67 rated for outdoor use and can also be installed below ground-surface for inconspicuous operation. A thin layer of dry, non-metallic material over the antenna is permissible during TX/RX operation.

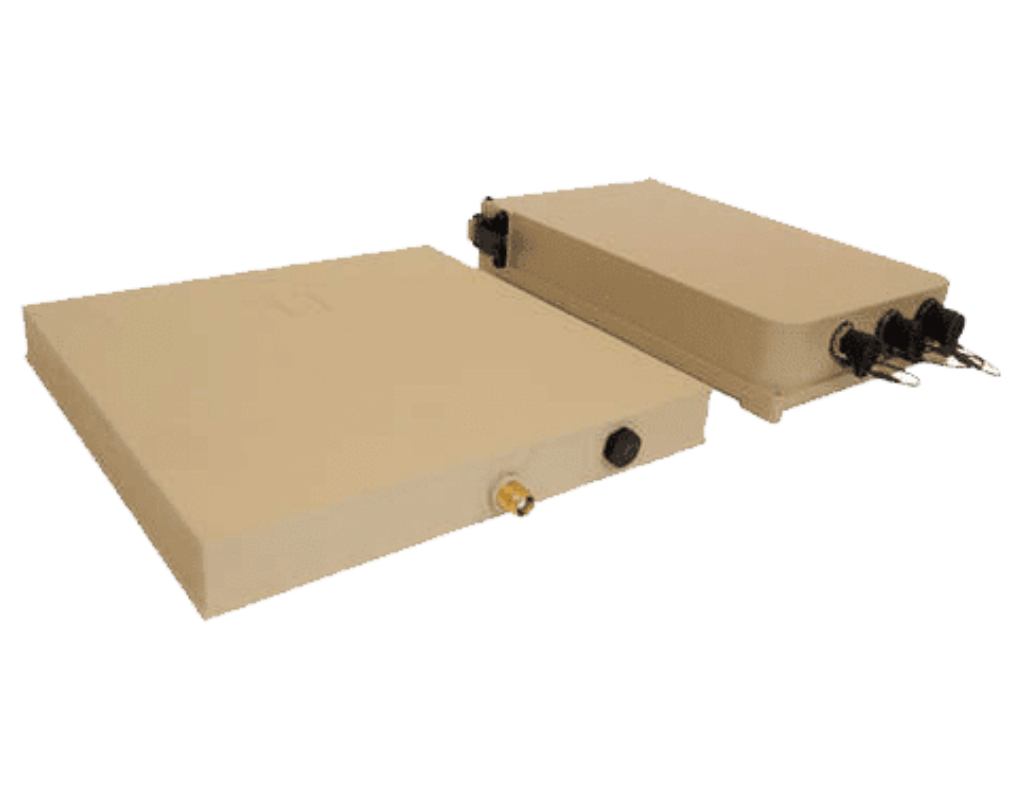

Package includes:
- Low profile BGAN (LPB) modem
- Low profile, lay flat, passive antenna
- 3 m RF antenna cable (TNC)
Features
![](http://gtc.co.uk/cdn/shop/files/SMS_Icon_4e5df3ee-9825-40e5-a3b8-7ce5388ba19c.png?v=1706542979)
SMS
![](http://gtc.co.uk/cdn/shop/files/Tracking_Icon_df01127c-cc3e-44fa-a2bd-27c6d277f769.png?v=1706542980)
TRACKING
![](http://gtc.co.uk/cdn/shop/files/Voice_Icon_f217ec80-a95c-4ee0-b9ed-aa9a0aa10b3c.png?v=1706542978)
VOICE
![](http://gtc.co.uk/cdn/shop/files/Hi-speed_Data_Icon_84225acc-38da-4c84-8b7f-d80ee57ffdb2.png?v=1706542978)
HIGH SPEED DATA
Specification
Specification:
- Satellite TX Frequency 1626.5–1660.5 MHz
- Satellite RX Frequency 1525–1559 MHz
- Modem Weight: 2.2 kg
- Modem Dimensions: 253 mm x 176 mm x 53 mm
- Antenna Weight: 1.2 kg
- Antenna Dimensions: 240 mm x 240 mm x 29 mm
- Operating Temperature -40° C to +75° C
- Storage Temperature -45° C to +80° C
- Humidity 95% RH at +40° C
- Antenna and Modem – IP-67 Compliant Water and Dust
- Non-operational Mechanical Vibration 200-2000 Hz,0.3 m2/s3; MIL-SPEC 810B Method 500.3 proc. 1
- Input Voltage Range 9 Vdc to 26 Vdc
- Power Consumption Transmit: < 20 W Narrow beam without transmit: ~3 W Idle (regional beam): < 1 W Off (wake on packet): < 10 mW (at 12 Vdc) Off (GPIO control): 0W
- Other Features: LED status indicator USB Type B for connection to configuration PC SIM/USIM slot Boot mode button (in SIM slot) 3.5 mm audio jack for audio pointing tones Function button
Key Features:
- Auto-on/autocontext activation automatically restores power and Packet Data Protocol (PDP) connection to the unit following loss of power and/or IP connection
- Remote control via SMS—allows command and control of the terminal using SMS, including configuration, debugging, and access to its Web interface
- Ultra-low power consumption
- Basic installation; no PC required
- Built-in GPS receiver
- Over the air firmware upgrades

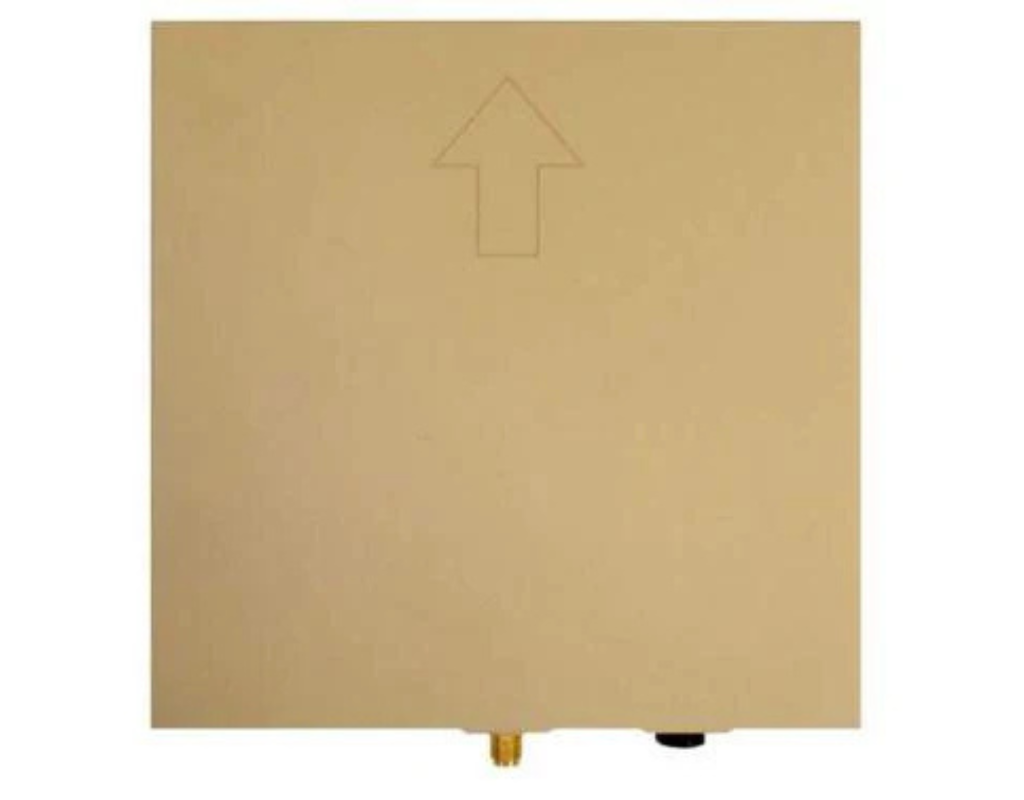

- Minimal pointing of antenna is required; lay antenna flat and point arrow toward the satellite (antenna operates between 30°–60° elevation angle but can be tilted from horizontal, if necessary, at greater elevations.)

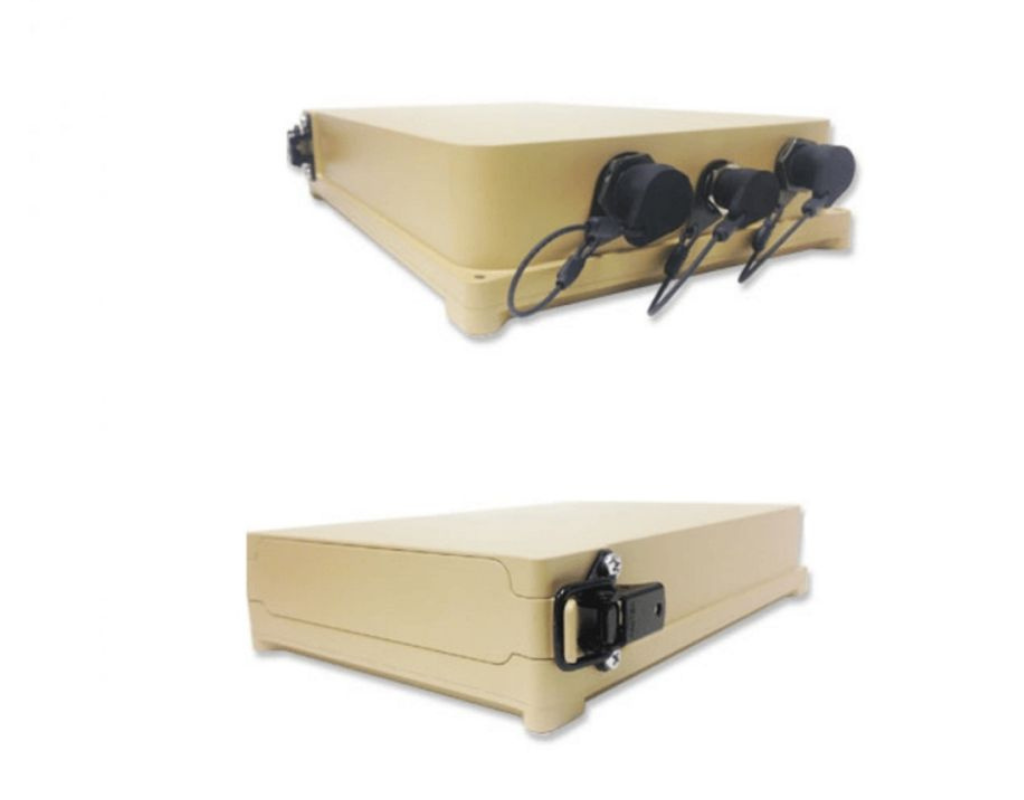

Interfaces:
- IP Ethernet connection via IP-67 rated 6-pin Amphenol connector
- Power-on switch signal via IP-67 rated 3-pin power input connector
- IP-67 TNC RF connection on modem to lay flat antenna
- USB for local configuration and setup
