Description

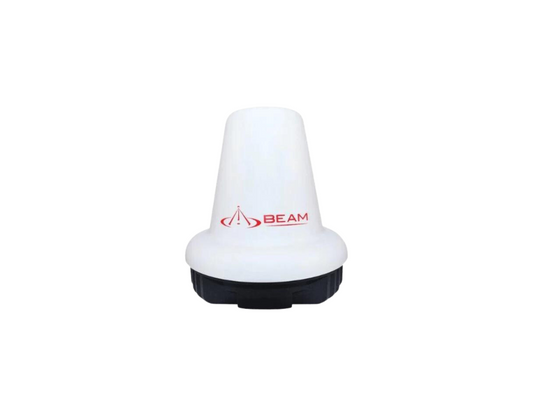

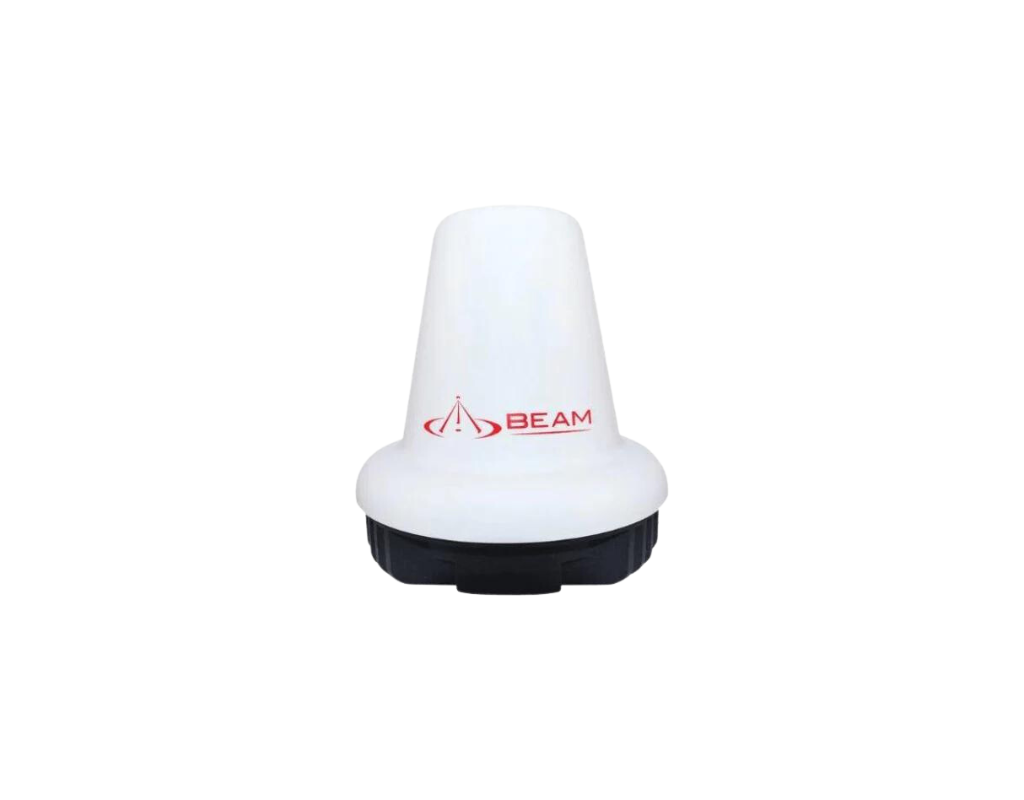

The Mast/Pole Marine Active Antenna for IsatDock (ISD710) is designed predominantly for maritime based applications and is designed to work with Beam's IsatDocks and Oceana terminals.
The antenna connection is protected from the environment with its solid bracket attached to the antenna.
Bean IsatDock Marine Active Antenna Key Features:
Marine Grade Antenna
The Mast/Pole Martine Antenna has been awarded with military grade standards. The antenna connection is protected from the environment with its solid bracket attached to the antenna.
Fixed or Mobile Applications
This Anttena is designed for both fxed and mobile applications in maritime environments.
Easy Integration
The ISD710 works with all of the Beam Inmarsat IsatDock's and Oceana terminals, however MUST only be used with Beam certified ACTIVE antenna cables.
Read More
Specification
| General Specifications | |
| Dimensions | 20.7 x 14.2 x 14.2 cm |
| Weight | 870g |
| RF Output Impedance | 50 Ohms |
| Inmarsat Transmit (operational) | 1626.5 to 1660.5 MHz |
| Inmarsat Transmit (extended) | 1668.0 to 1675.0 |
| Inmarsat Receive (operational) | 1525.0 to 1559.0 MHz |
| Inmarsat Receive (entended) | 1518.0 to 1525.0 MHz |
