Description
What is Included?

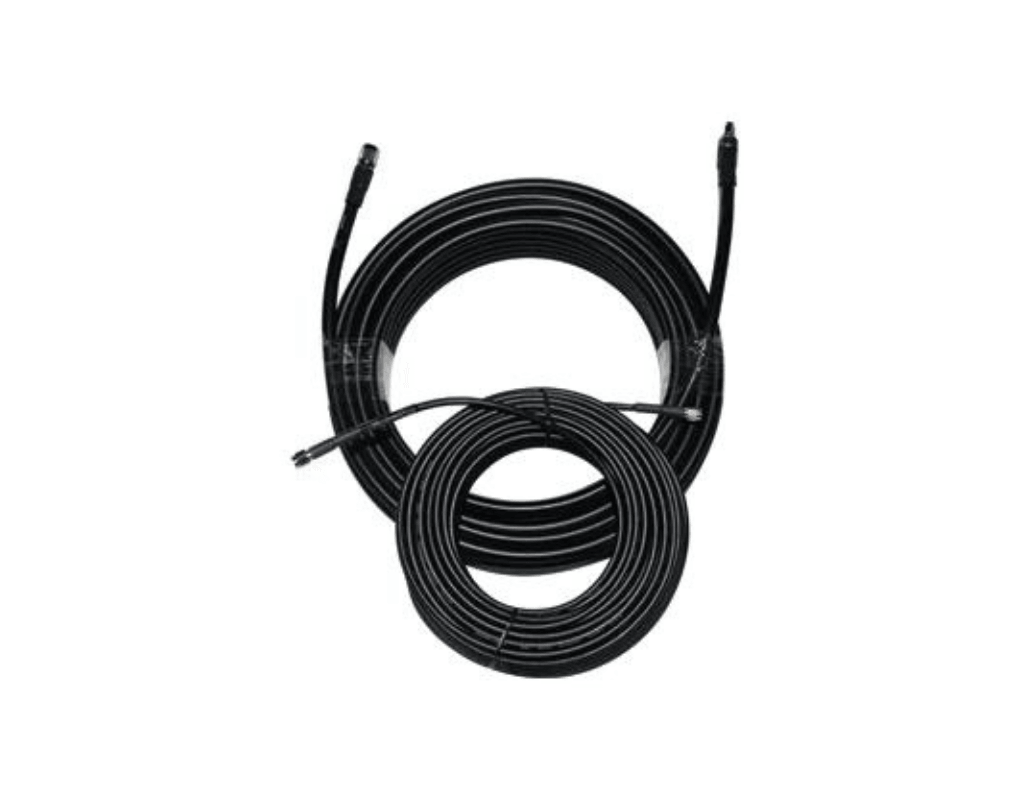

- Inmarsat Antenna Cable (30m)
- GPS Antenna Cable (30m)
Key Features:
- Compatible with IsatDock/Terra
- Provides a flexible installation option for fixed installations with the ISD700 antenna
*Note: ONLY for use with the ISD700 Passive Antenna.
Read More
Specification
| General Specifications | |
| Cable Kit Length | 6.1 kg / 13.45 lbs |
| Cable Kit Weight | 30m / 98.4 ft |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Inmarsat Cable | |
| SAT Cable Length | Passive 29.5m SAT TNC(m)-TNC(m) |
| Connector Diameter | 1.55 cm / 0.61" |
| Cable Diameter | 1.27 cm / 0.5" |
| Thickest Diameter | 1.57 cm / 0.62" |
| Bend Radius Single | 3.2 cm / 1.26" |
| Bend Radius Repeat | 12.7 cm / 5" |
| GPS Cable | |
| GPS Cable Length | Passive 30m GPS SMA(m)-SMA(m) |
| Connector Diameter | 0.81cm / 0.32" |
| Cable Diameter | 0.61 cm / 0.24" |
| Thickest Diameter | 0.83 cm / 0.32" |
| Bend Radius Single | 1.91 cm / 0.75" |
| Bend Radius Repeat | 6.35 cm / 2.5" |
