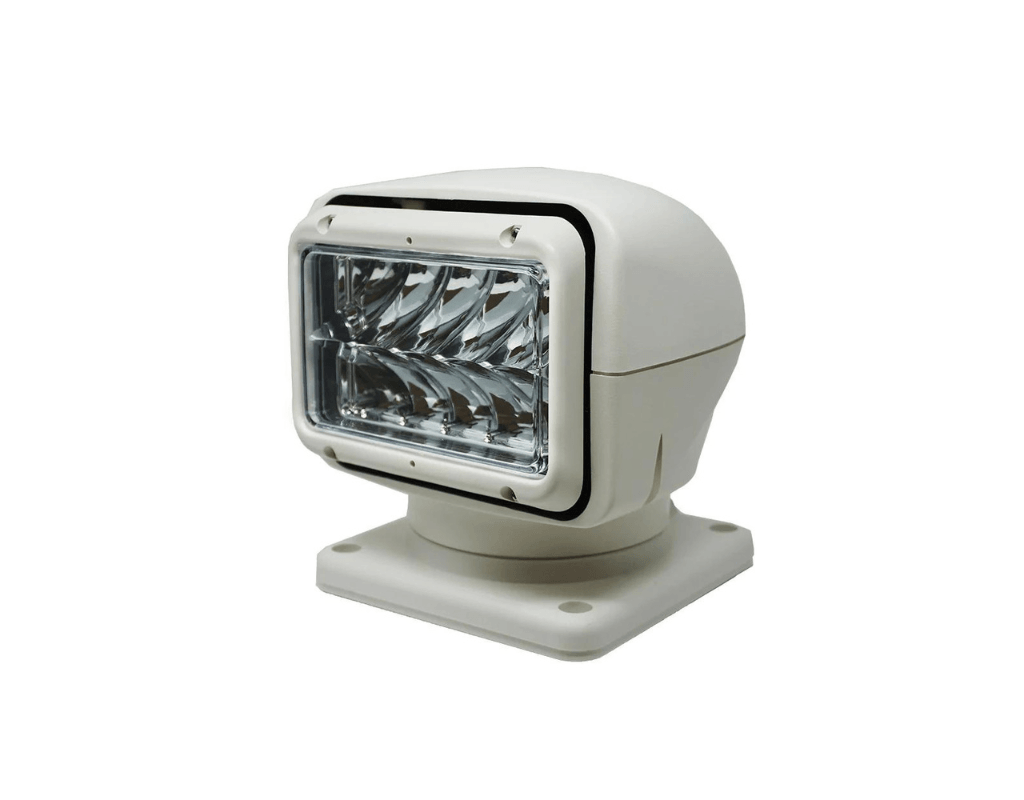

ACR RCL-95 Wireless LED Searchlight (White)

ACR RCL-95 Wireless LED Searchlight (White)


Model Number: RCL-95W / Product Number: 1958

The all-new RCL-95 LED searchlight was designed for performance and simplicity.  With an industry-best 460,000 candelas using 10 High Flux (50W) LEDs, you have visibility over ¾ of a nautical mile to light the way to your destination.

Please note: we do not hold stock of this product but can order on a case-by-case basis. Lead time is approx. 2-4 weeks.

ACR RCL-95 Wireless LED Searchlight (White)


With its 10 high flux LEDs the RCL-95 offers 460,000 candelas with a maximum beam distance of 1,372m.  The searchlight can be operated with the wireless handheld remote or wired dash mount joystick, both of which are included.


The RCL-95 features 360 degrees continous rotation and 135 degrees tilt to easily light docks, bridges and buoys.


The RCL-95 is offered with a 2 year warranty against factory defect in materials and workmanship.

Read More
Read Less



Dimensions 5.9 x 7.1 x 7.5" (15 x 18 x 19 cm)
Weight 1.9kg

Acrylonitrile Styrene Acrylate (ASA) Housing for improved weather resistance


Wireless Handheld Remote (included) / 433.92 MHz and

Wired Dash Mount Joystick (included with 16.4’ (5m) cable)

Peak Beam Candle Power


Beam Maximum Distance

4,501 ft (1,372 meters)

Beam Pattern / Angle SPOT / 8 degrees
Elevation Angle 135°
Rotation 360° Continuous
Rotation Speed Fast 19° per second, slow 12° per second
Elevation Speed 11° per second
Lamp LED 50W (OSRAM x 10) / 50,000 hour life
IP Rating IP 56 (Housing) / IP 68 (LED Module)
Footprint Diameter (distance between mounting holes) 4.92” x 4.92” (12.5 x 12.5 cm)
Total Footprint (dimensions of searchlight base) 6.06” x 6.06” (15.4 x 15.4 cm)
Power Requirements 12 or 24 V DC
Warranty 2 Years
Approvals FCC / CE / R10
Key Features
10 High Flux LEDs (OSRAM)
460,000 Candela, Max Beam Distance 4,501 Feet (1,372 m)
Wireless Handheld Remote and Wired Dash Mount Joystick (Both Included)
360o Continuous Rotation and 135o Tilt
Auto-home return when off
4 Amps (12V) to 2 Amps (24V)
Efficient, long-life LED’s - 50,000 operating hours
UV & Weather Resistant
Simple Installation (12-24V Power Connection and 5M Wired Joystick Control Cable)
