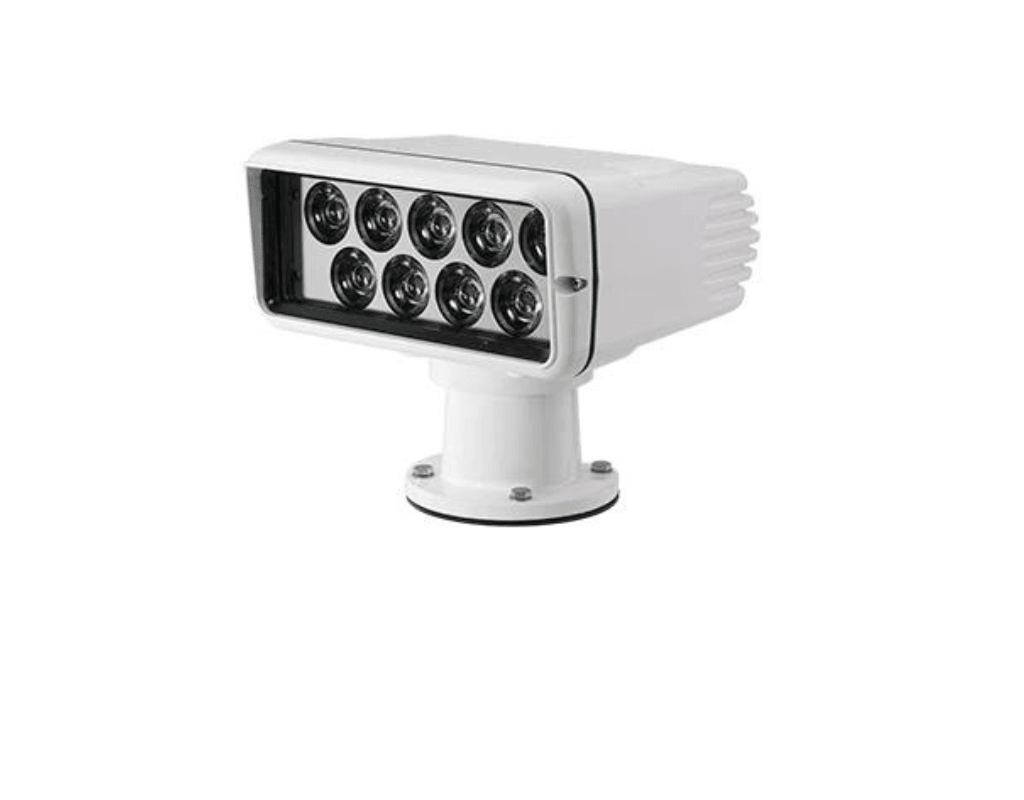

ACR RCL-100 LED Searchlight (White)

Model Number: RCL-100 / Product Number: 1951

The RCL-100 LED searchlight provides high performance combined with a low profile design making it ideal for all sorts of vessels.

Please note: we do not hold stock of this product but can order on a case-by-case basis. Lead time is approx. 2-4 weeks.

Description

The LED version of the RCL-100 incorporates a 9 LED array to produce over 220,000 candelas of light. The wired remote control operation allows you to rotate the light 360 degrees at either a fast or slow speed.

The light features a 7 degree beam angle and provides elevation angles at 9 degrees up and 17 degrees down.

The die cast aluminium case is triple primed and painted with UV stabilizer to withstand years of use in the harsh environment at sea.

The XRCiZ is a clever feature that can be pre-programmed - it will automatically power on the searchlight and rotate it 360 degrees every 30 days to ensure surfaces are free from corrosion and all electrical contacts are functional.

The RCL-100 LED is offered with a 1 year warranty against defects in materials and workmanship.

Specification

Specification
Dimensions	8 x 9 x 8” (20.3 x 22.9 x 20.3 cm)
Weight	3.2kg
Material	518 Die-cast aluminum
Operation	Remote-controlled wired Point Pad
Peak Beam Candle Power	460,000
Beam Maximum Distance	4,501 ft (1,372 meters)
Beam Angle	7° vertical, 7° horizontal
Elevation Angle	9° up, 17° down
Rotation	360° Continuous
Rotation Speed	Fast 31° per second, slow 20° per second
Elevation Speed	2.8° per second
Lamp	9 LED Array (220,000 cd)
IP Rating	IP 56 (Housing) / IP 68 (LED Module)
Footprint Diameter	4.75” (120.7 mm)

Key Features
Ultra-bright, 9 LED array generates over 220,000 peak candela
Efficient, long-life LED’s - 40,000 operating hours
Reduced power consumption demand by up to 50% on 12V vessels
The controller has state-of-the-art electronics to protect the light from most power surges
Internal elevation mechanism for precise pitch control of beam; protects elevation mechanism from weather
Rugged triple-primed and sealed, marine-grade aluminum housing
Includes fingertip remote control Point Pad; up to three remote Point Pad units may be installed on system; surface/flush mount options included
Exclusive XRCiZ™ feature rotates and moves light assembly every 30 days from activation to keep all bearing surfaces free of corrosion and all electrical contacts functional
The wiring harness of 15 feet (4.57 m)
Two-speed motor
