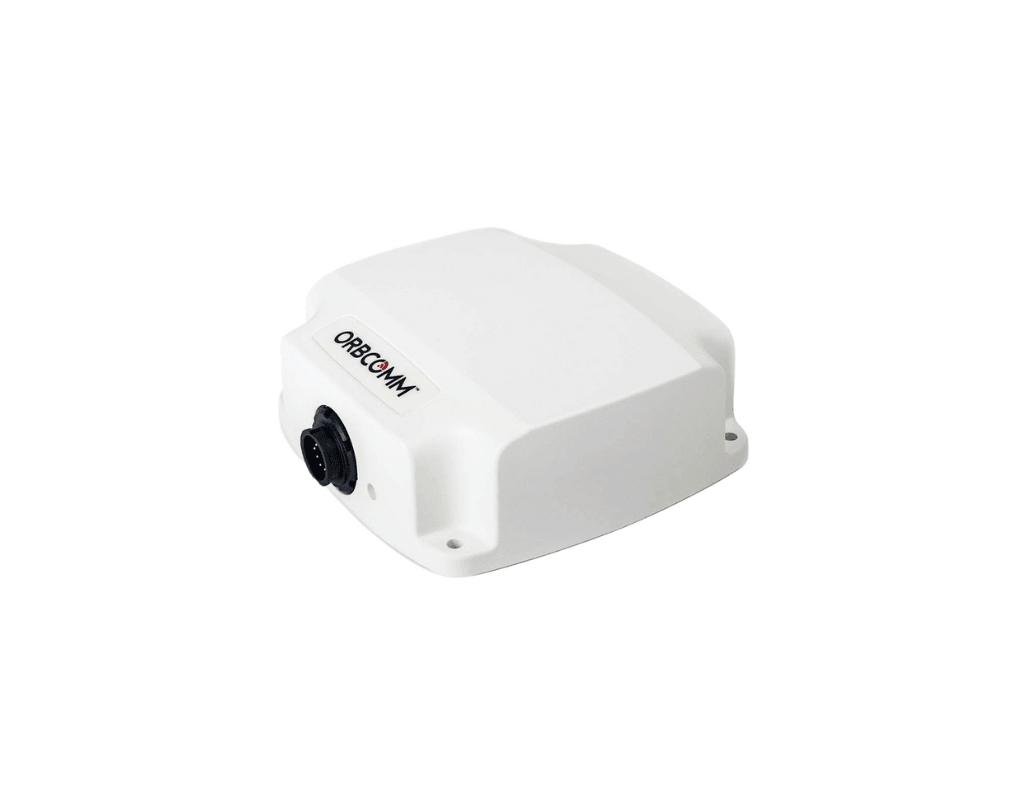

Orbcomm ST 6100 Satellite Terminal

Orbcomm ST 6100 Satellite Terminal

Revolutionary satellite terminal packed with versatility and global connectivity levels. Reliably track, monitor and control assets in some of the word’s most isolated regions.

Add your email to be alerted when the Orbcomm ST 6100 Satellite Terminal becomes available.

Orbcomm ST 6100 Satellite Terminal


The ST 6100 satellite terminal from ORBCOMM gives complete oversight and control of industrial assets operating in remote areas. The versatile, environmentally sealed ST 6100 can be installed on mobile assets from commercial vehicles and railcars to fishing vessels and heavy equipment. And with two-way satellite connectivity, the ST 6100 is ideal for remotely monitoring and controlling fixed and portable assets used in SCADA applications such as those in the energy sector where access may be restricted, including pipelines, flow meters, pumps, generators, and tanks.

Easy integration

ORBCOMM© opens the door to IoT solutions for the satellite communications market. The fully programmable ST 6100 includes comprehensive resources to facilitate integration into a wide range of custom solutions. The resources include development, testing and production environments, documentation, code samples, device-level configurable applications, and free technical support.

Global satellite connectivity

The ST 6100 delivers reliable global communications over the IsatDataPro satellite service for uninterrupted visibility of operations and access to business-critical field data in even some of the world’s most remote locations. And because of its two-way connectivity, users can remotely control assets without sending workers to the field.

Comprehensive feature set

ORBCOMM’s next-generation ST 6100 leverages the latest technology advancements to offer enhanced functionality at a great value. The internal antenna features exceptional low elevation angle performance, allowing one device to support both terrestrial and maritime applications. The terminal also features a built-in accelerometer, expanded memory capacity, and enhanced support for global navigation systems—GPS, Glonass, and Beidou.


Dimensions 12.6 cm x 12.6 cm x 4.9 cm
Operating Temperature -40°C to +85°C
Dust and Water Ingress IP67
Vibration SAE J1455 (Sec fig 6-8); MIL-STD-810G (Sec 514.6)
Shock MIL-STD-810G (Sec 516.6)
Inputs/Outputs 4 analog or digital in/out
Input Voltage 9 to 32V; Load dump protection: +150V; SAE J1455 (Sec. 4.13)
Power consumption (typical average @12V DC, 22°C): IDP Receive: 65 mA
GPS/Glonass/Beidou Receive: 22 mA
Transmit: 0.65 A
Sleep: 100 μA
