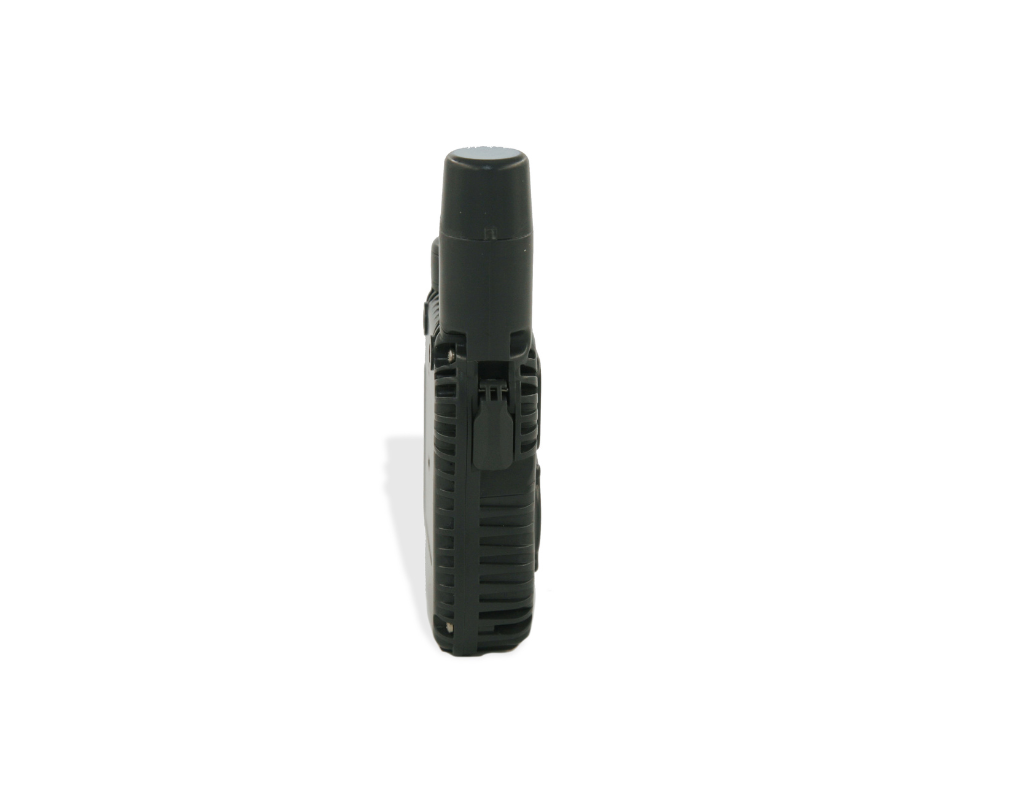

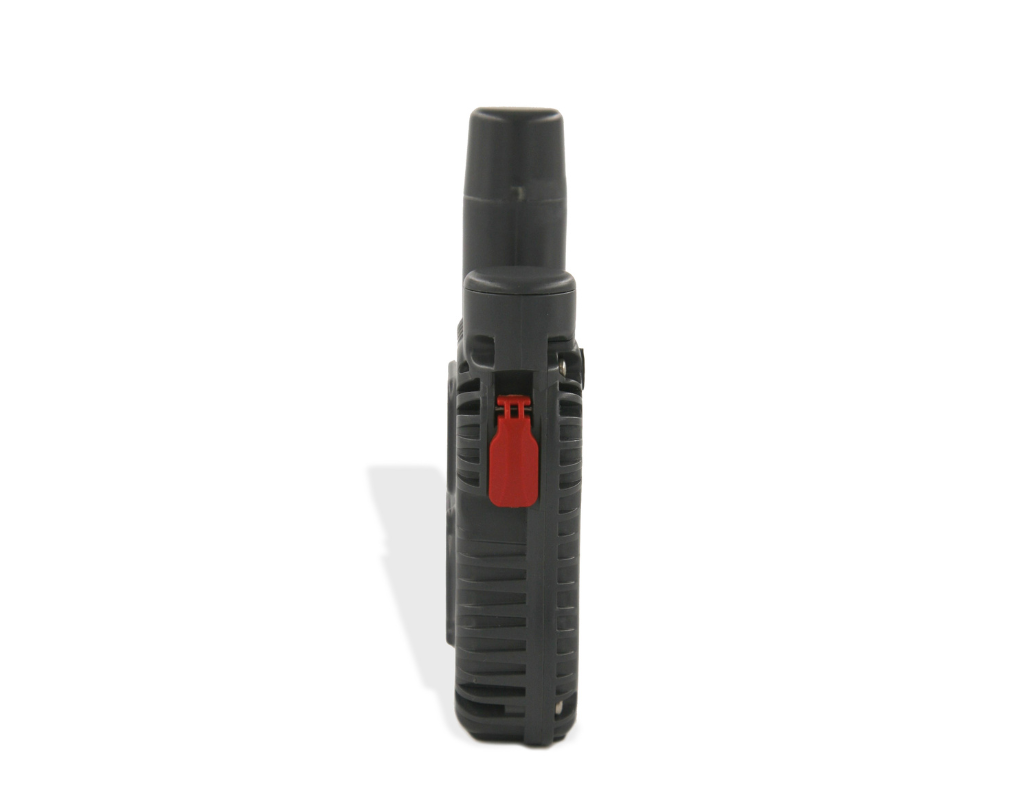

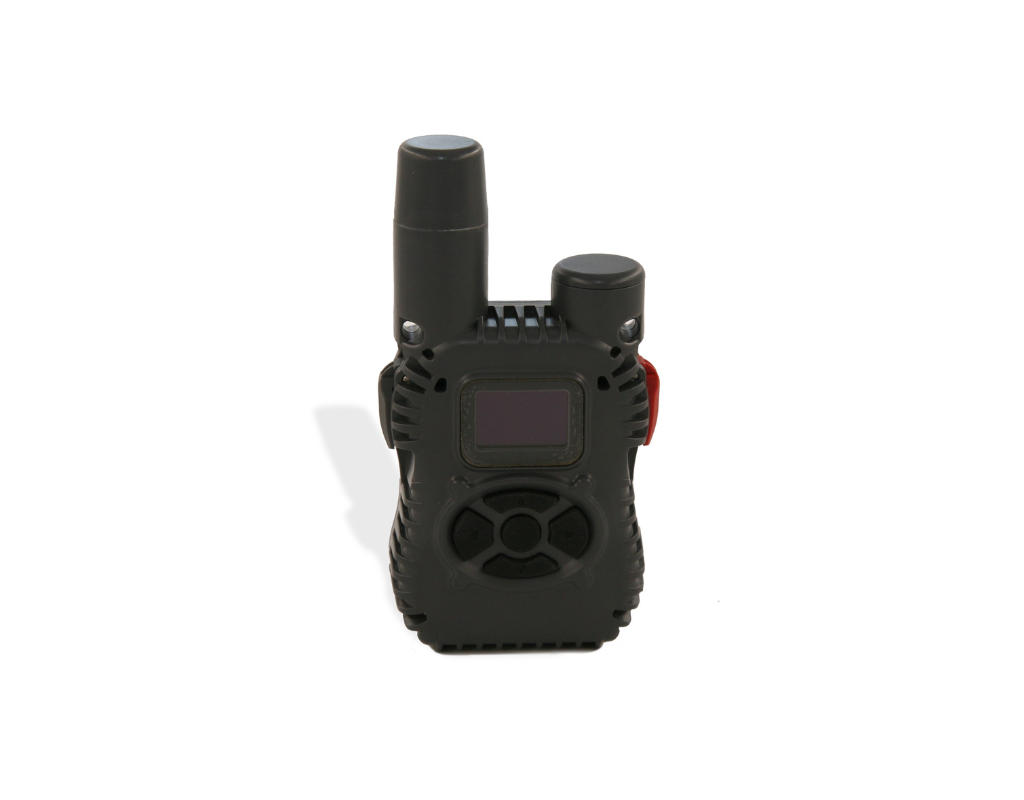

The SHOUT nano 100 is a lightweight, handheld or body-worn narrowband SATCOM terminal equipped with integrated Iridium and GPS antennas. It pairs with a smartphone via Bluetooth to support two-way messaging, including free text, pre-set messages, or a mix of both. The unit can automatically send location updates every hour, providing more than 2,000 reports on a single cycle. It also has the ability to wake periodically from sleep mode to transmit its position back to a command center.
For emergencies, a dual-button 911 function triggers immediate alerts, which can be routed either to a monitoring hub or directly to a nominated contact. Data transmissions can be sent in standard form, encrypted with 256-bit AES, or, if required, in encrypted PECOS formats that incorporate Brevity codes.
Configuration is straightforward: users can adjust operating parameters via Bluetooth with the SHOUT mobile app, or connect the device through USB-C to a computer running SatTerm.
Key Features:
- Small Size, Low-Profile
- Low-Cost, Handheld, Body-Worn tracking, and messaging device
- Programmed for either DoD or commercial Iridium Gateways
- Ultra-Low Power Consumption
- Automatic Location Reports (+2,000 reports)
- 911 Alert Capability
- Bluetooth
- Free-text, canned messages or combined free-text and canned messages via smartphone
- Data logging
- Optional 256-bit AES encryption
- Real-time, pole-to-pole coverage
- AC Adapter & USB-C Port
- Integrated Motion Sensor
- USB Interface
- 72-Channel GPS receiver with -160 dBm sensitivity
- IP67 Rated
GTCTrack Compatible
Our online mapping portal can track your SHOUT tracker to provide real-time information via your GPS location. Any person provided with the login can become an operator to monitor any number of GSM or satellite assets simultaneously in real-time and historically on both the Basic and Professional plans.
Key benefits include:
- Geo-Fencing capabilities (Professional Plan only)
- Alert options available, with varying degrees of urgency for operator and device holder
- Global Tracking
- Multiple layer options and map views
- Inclusive to all devices with GPS tracking capabilities
- Past-tracking data points are always accessible, until the device is de-activated
- Mapping and asset grouping customisation options are available
- Data Reporting and Scheduling functions
- Notifications and alerts can be sent directly to the holder of the device
Available from just £6.50 ex VAT a month per device and provides location-based data from your device to the online maps. The tracking equipment determines its location by triangulating a position using GPS (Global Positioning System) and then transmits this information via GSM, Satellite, or VHF to a central server for processing.
- Suitable for users with single devices
- Excludes Geo-Fencing
- Pay upfront annually to receive a discounted subscription of £65 ex VAT per year
Available from just £12.50 ex VAT month per device and allows you to track multiple devices on the same map in addition to features available on the Basic plan. This plan is essential for businesses or organisers managing multiple devices to be able to track the movements of individuals and assets.
- Suitable for users requiring access to multiple devices under one login
- Includes Geo-Fencing
- Fee is applicable per device
- Pay upfront annually to receive a discounted subscription of £140 ex VAT per year
