Description
What is Included?

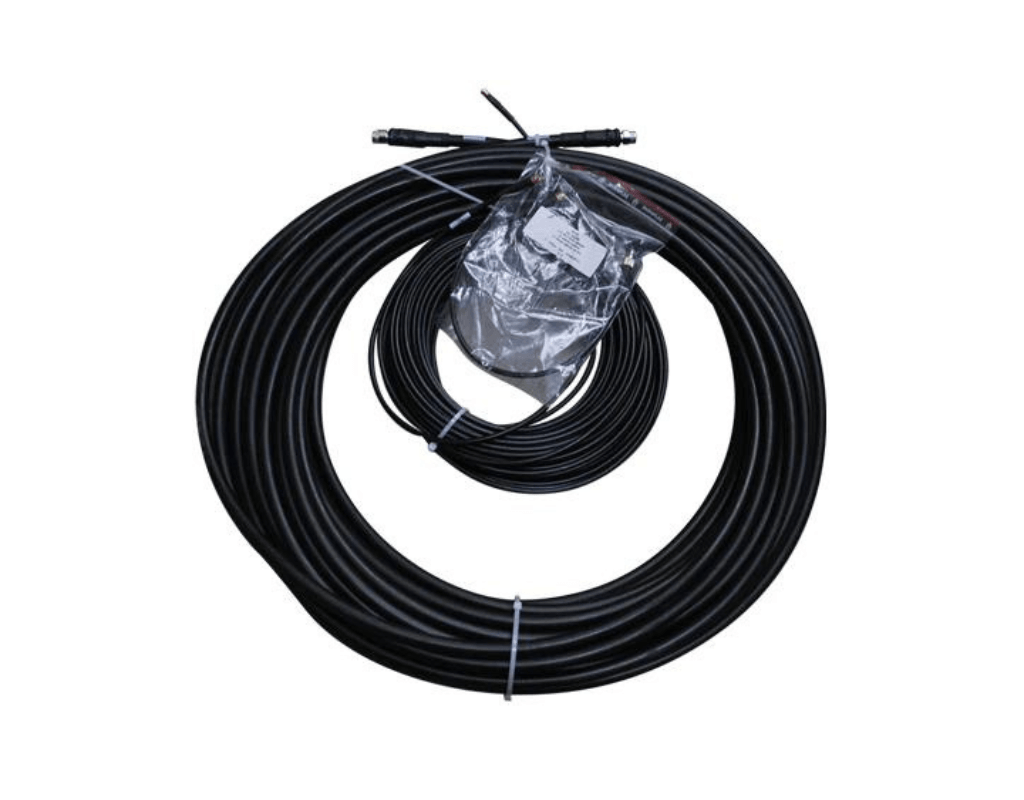

- Inmarsat Antenna Cable (50m)
- GPS Antenna Cable (50m)
Key Features:
- Provides a flexible installation option for fixed installations with the ISD700 antenna
- Compatible with IsatDock/Terra
- Pre-terminated with SMA/TNC connectors
*Note: ONLY for use with the ISD700 Passive Antenna.
Specification
General Specifications | |
Cable Kit Length | 50m / 164 ft |
Cable Kit Weight | 30 kg / 66.14 lbs |
Inmarsat Cable | |
SAT Cable Length | Passive 49.5m SAT TNC(m)-TNC(m) |
Connector Diameter |
1.9 cm / 0.75" |
Cable Diameter |
1.49 cm / 0.59" |
Thickest Diameter |
2.2 cm / 0.87" |
Bend Radius Single |
3.8 cm / 1.5" |
Bend Radius Repeat |
15.2 cm / 5.98" |
GPS Cable | |
GPS Cable Length | Passive 50m GPS SMA(m)-SMA(m) |
Connector Diameter | 0.82 cm / 0.32" |
Cable Diameter | 0.9 cm / 0.35" |
Thickest Diameter | 0.76 cm / 0.3" |
Bend Radius Single | 2.2 cm / 0.87" |
Bend Radius Repeat | 7.62 cm / 3" |
