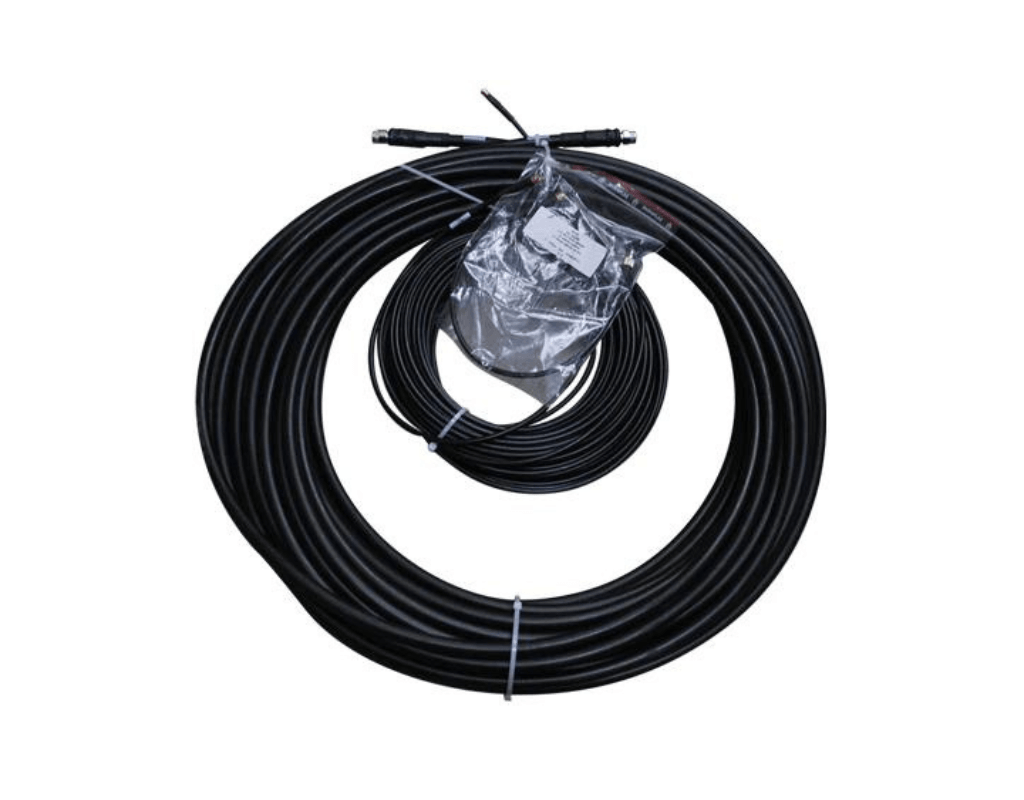

Beam 40m IsatDock/Terra SMA/TNC Passive Cable Kit

£1,489.20 (Inc. VAT)
£1,241.00 (Ex. VAT)

Part Number: ISD940

The BEAM Inmarsat SMA/TNC antenna cable kit (40m / 131ft) provides a flexible installation option for fixed installations with the ISD700 antenna.

What is Included?

Compatible with IsatDock/Terra
Provides a flexible installation option for fixed installations with the ISD700 antenna.
Pre-terminated with SMA/TNC connectors.

*Note: ONLY for use with the ISD700 Passive Antenna.

General Specifications
Cable Kit Length	40m / 131 ft
Cable Kit Weight	25kg / 55.12Ibs
Inmarsat Cable
SAT Cable Length	Passive 39.5m SAT TNC(m)-TNC(m)
Connector Diameter	1.9 cm / 0.75"
Cable Diameter	1.49 cm / 0.59"
Thickest Diameter	2.2cm / 0.87"
Bend Radius Single	3.8 cm / 1.5"
Bend Radius Repeat	15.2 cm / 5.98"
GPS Cable
GPS Cable Length	Passive 40m GPS SMA(m)-SMA(m)
Connector Diameter	0.81 cm / 0.32"
Cable Diameter	0.9 cm / 0.35"
Thickest Diameter	0.61 cm / 0.24"
Bend Radius Single	1.91 cm / 0.75"
Bend Radius Repeat	6.35 cm / 2.5"
Fly Lead Inmarsat Cable
Fly Lead Inmarsat Cable Length	Adaptor 1 50cm TNC(f)-SMA(m)
Connector Diameter	1.37 cm / 0.54"
Cable Diameter	0.61 cm / 0.24"
Thickest Diameter	1.4 cm / 0.55"
Bend Radius Single	1.91 cm / 0.75"
Bend Radius Repeat	N/A
