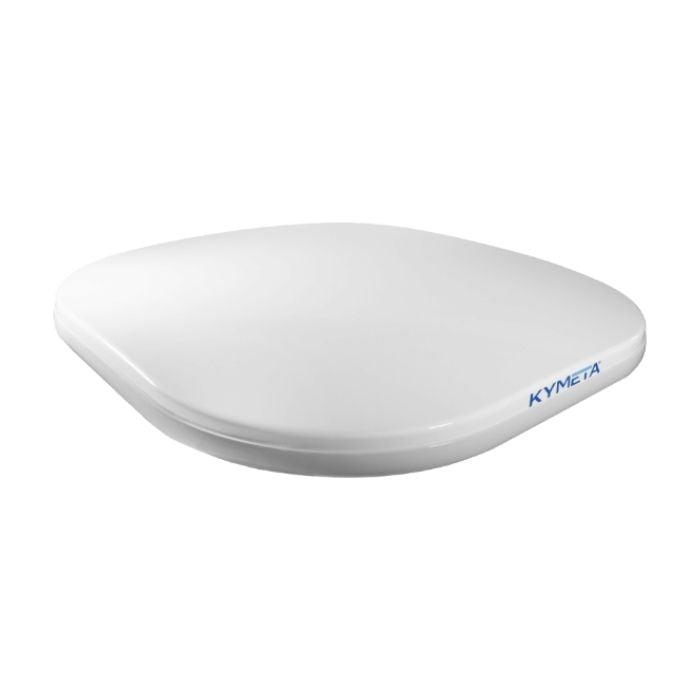

The u8 terminal is the next generation of high performance Ku band satellite terminals for use on land or at sea from Kymeta. Whether connecting via satellite or cellular the u8 will keep you connected even in the most remote of locations.
For detailed information on pricing and airtime packages please contact us.
Due for release in Q4 2020, the Kymeta u8 terminal provides an all-in-one communications and high-speed data solution anywhere you need it.
The u8 has been redeveloped to improve antenna performance and offers greater flexibility in the way it can be used with terminal, antenna and flyaway packages available.
The u8 terminal is suitable for use at sea or on land for first responders, vehicles, military and government customers.
The u8 terminal provides enhanced performance alongside greater flexibility for customers to integrate the hardware into their own customised solution. Furthermore, the u8 antenna is ready for the Ku-band LEO constellations of the future.
Kymeta u8 features an integrated multi-WAN device which provides seamless satellite and cellular coverage.
u8 is lightweight, aerodynamic and it's low profile makes it ideal for developers to integrate the terminal into their own mobile platforms.
The u8 requires very low power to point and track while on the move - typically just 35W.
Quick to install and set-up, the u8 is ideal for rapid deployment - un-box, add power and go.
The u8 terminal is available in a variety of packages including all inclusive hardware and airtime plans payable on a monthly basis.
Kymeta is delivering solutions for the next generation of mobile connectivity. Unlocking the potential of satellite, combined with cellular networks, Kymeta offers solutions that are low-profile, lightweight, easy to install and virtually maintenance free. In August 2020 Kymeta raised $85.2 million in a new funding round led by Bill Gates.
VOICE
HIGH SPEED DATA
KU BAND
All-inclusive bundled connectivity packages with monthly rates are available for the u8 terminal through the Kymeta Connect program. Details coming soon.
| Specification | |||
Antenna |
Tracking |
||
| Band | Ku | Scan Angles | Az 360°, El +15° to +90° |
| Antenna Type | Electronically scanned array | Tracking Receiver Type | Integrated tracking system DVB-S2, DVB-S2X |
| Aperture | RX and TX combined 82 cm active diameter |
||
| Polarization | Linear, software-defined (circular with software upgrade) |
||
Rx |
Mechanical |
|
|
| Rx Frequency Range | 10.7 GHz to 12.75 GHz | Dimensions | L 89.5 cm × W 89.5 cm x H 12.3 cm L 35.2 in. × W 35.2 in. x H 4.8 in. |
| G/T Broadside | 9 dB/K to 11.5 dB/K | Weight | 25kg (55 lb) |
| G/T @ 35° Elevation, Typical Land Mobile |
6 dB/K to 9 dB/K | Operational Temperature | -40 °C to +70 °C (equivalent to +55 °C + solar loading) with an integrator air circulation solution |
| Rx Instantaneous Bandwidth | 250 MHz | Storage Temperature | 40 °C to +85 °C |
|
|
Ingress Protection |
IP66 |
|
Tx |
Interfaces |
||
| Tx Frequency Range | 13.75 GHz to 14.5 GHz | Network Interface | Ethernet |
| Tx Gain Broadside | 33.5 dBi to 34.5 dBi (14.0 GHz to 14.5 GHz) |
RF Connectors | N-type |
| GTx Gain @ 35° Elevation, Typical Land Mobile |
31 dBi to 32.5 dBi (14.0 GHz to 14.5 GHz) |
Waveguide Port | WR-75 |
| Cross-Polarization Isolation | ≥25 dB | ||
| Tx Instantaneous Bandwidth | >62 MHz | ||
Power |
Certifications |
||
| DC Input Power | 12 VDC to 36 VDC max | Certifications in Progress | CE, UL, RoHS, FCC |
| Power Consumption (No Modem, RF Chain) | 35 W (typical), 450 W (peak)* | ||
Specifications as of 30 September 2020. Subject to change.
* Software restriction on peak draw available. May affect antenna performance at low temperature.
