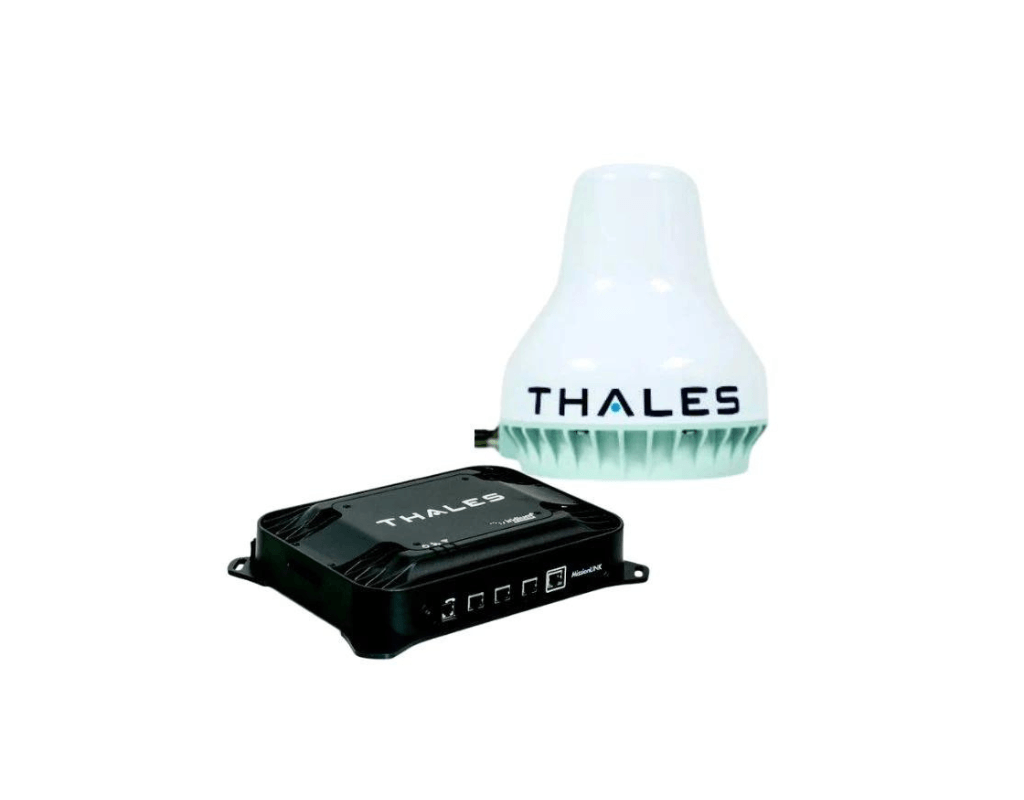

Thales Missionlink 200

The MissionLink 200 from Thales is the latest Iridium Certus® land terminal offering satellite connection anywhere in the world for basic voice, data and internet requirements.

Thales MissionLink 200 is the entry level Iridium Certus® satellite broadband terminal. Iridium's 66 low earth orbiting satellites provide voice and data services via the Iridium Certus® service no matter where in the world you are. Suitable for use on vehicles or fixed building installations for remote offices, government and NGO use.

176 kbps upload/download speeds enable you to make calls, send/receive emails and browse the web.

MissionLink 200 features one of the most compact antennas on the market at just 12.5cm diameter/14cm height making it ideal for even the smallest of spaces.

Specification

Dimensions	Height: 2.3 inches (5.8 cm) Width: 12 inches (30.5 cm) Depth: 9 inches (22.9 cm)
Weight	Weight: 7.5 pounds (3.4 kg)
IP Rating	IP31
Power Options	Option 1: 10–32 VDC Option 2: AC/DC supply with 12 VDC (65 watt nominal/120 watt maximum)
Front Connectors	RJ-45 LAN (3) Class 2 PoE RJ-45 WAN (1) for cellular, VSAT and other IP connections, RJ-14 POTS (2 independent phone lines)
Rear Connectors	DC Power Input (10–32V) MIL-STD-1275D, DC Power Input (+12V Regulated), GPIO (RS-232, +12V out, Emergency, Radio Gateway, Discrete I/O), TNC — RF connection to Antenna, Wi-Fi — Reverse SMA, SIM card slot
Mechanical Vibration and Shock	MIL-STD-810G w/Change 1, Test Method 514.7, Category 4
Antenna Specifications
Size	5 inches dia. x 6.7 inches h (12.5 cm dia. x 17 cm h)
Weight	<0.7 kg/1.5 lbs
Power	Directly powered by the terminal at 24 VDC
IP Rating	IP67
Operating Temperature	-40 to +55° C
Mechanical Vibration and Shock	MIL-STD-810G w/Change 1, Test Method 514.7, Category 4
