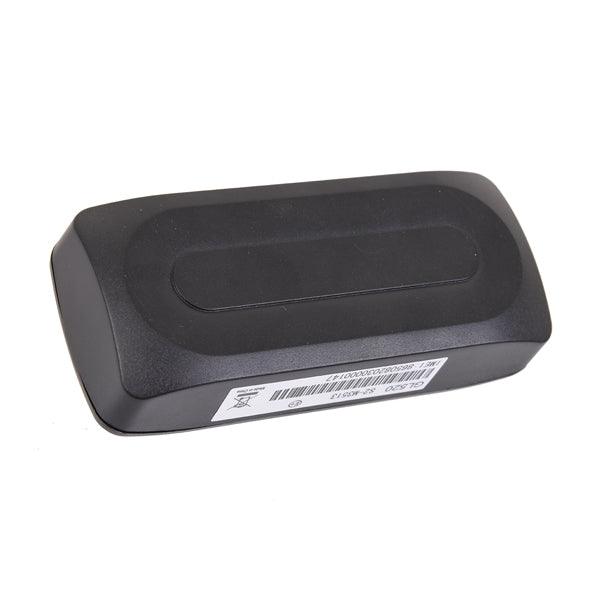

Queclink GL520M GSM/GPS Asset Tracker

Load image into Gallery viewer, Queclink GL520 GSM/GPS Asset Tracker

Queclink GL520M GSM/GPS Asset Tracker

£82.80

Queclink GL520 GSM Tracker is a reliable and cost-effective device to track assets. This GSM tracker consumes a minimal amount of power giving it an impressive battery life.

The Queclink Mini USB Cable is required to upgrade firmware and configure your device.

Would you like to add the Queclink Mini USB Cable?

- +

Quantity must be 1 or more

Description

Queclink GL520 GSM Tracker is a reliable and cost-effective device to track assets.

GSM Tracker Queclink GL520 Features:

This GSM tracker consumes a minimal amount of power giving it an impressive battery life.

With GPS enabled it will send one location report every day for 736 days. With GPS disabled it will send one location every day for 1,234 days - this will result in a less accurate location as it will rely on the GSM capability only.

No separate antenna is required, the device transmits from one compact unit measuring just 90mm x 40mm x 20mm. This GSM tracker also has a built in light sensor which will send an alert if it detects the device is being repositioned.

Queclink GL520 GSM Tracker reports to our GTCTrack online mapping portal. GTCTrack provides real-time positioning and specialized reporting of assets worldwide and is compatible with over 50 different manufacturers of tracking hardware.

Subscriptions

TO SIGN UP TO ONE OF OUR GSM PLANS, PLEASE CLICK HERE

Service	10 MB	20 MB	50 MB	100 MB
Minimum Duration	1 month*	1 month*	1 month*	1 month*
Monthly Fee	£2.00	£2.00	£2.00	£2.00
Airtime Fee	£2.50	£5.15	£12.50	£23.50
Inclusive MB	10	20	50	100
Coverage*	Europe	Europe	Europe	Europe
Messages**	6,250	12,500	31,250	62,500
Overage Fee	£4.15 per 10 MB	£6.40 per 20 MB	£12.95 per 50 MB	£12.95 per 100 MB

Service	Monthly Fee	Annual Fee
Basic Mapping	£5.50	£57.50
Suitable for users with single devices. Excludes Geo‐Fencing. Please select Professional Mapping if you require Geo‐Fencing.
Professional Mapping	£12.50	£140.00
Suitable for users requiring access to multiple devices under one log‐in. Includes Geo‐Fencing. Fee is applicable per device.

ALL PRICES EX VAT

*Coverage list: Austria, Belgium, France, French Guyana, French West Indies, Germany, Gibraltar, Greece, Hungary, Iceland, Ireland, Italy, La Reunion (France), Latvia, Liechenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom.

**Estimated Figure

Specification

GSM Specifications
Frequency	Quad band GSM/GPRS 850/900/1800/1900 MHz Compliant to GSM phase 2/2+ -Class 5 (0.8W @ 900 MHz) -Class 1 (1W @ 1800 MHz)
GPRS	GPRS multi-slot class 8 GPRS mobile station class B
RMS Phase Error	5 deg
Max Out RF Power	GSM900/850: 29.0±2 dBm PCS/DCS: 30.0±2 dBm
Dynamic Input Range	-15 ~ -108 dBm
Receiver Sensitivity	Class Ⅱ RBER 2% (-107 dBm)
Stability of Frequency	< 2.5 ppm
Max Frequency Error	±0.1 ppm

GPS Specifications
GPS Chipset	u-blox All-In-One GPS receiver
Sensitivity	Autonomous: -147 dBm Hot start: -156 dBm Reacquisition: -160 dBm Tracking: -162 dBm
Position Accuracy (CEP)	Autonomous: < 2.5m SBAS: < 2.0m
TTFF (Open Sky)	Cold start: 27s average Warm start: 27s average Hot start: 1s average

Interfaces
GSM Antenna	Internal Only
GPS Antenna	Internal Only
Internal Indicator LED	GSM, GPS
Serial Port	Micro USB

General Specification

Dimensions	90mm x 39.8mm x 20mm
Weight	91g
Backup Battery	Two CR123A lithium batteries 1400 mAh
Standby Time	Standby current: < 5uA GPS off, one report per day: 1234 days GPS on, one report per day: 736 days
Operating Temperature	-20℃ ~ +60℃
Magnetic Mount Case	Yes

Air Interface Protocol
Command Set	@Track protocol command
Transmit Protocol	TCP, UDP, SMS
Working Mode	Frequency modulation power save mode, for long standby time Continuous mode, for emergency tracking
Scheduled Timing Report	Report position and status according to preset time schedules
Geo-fence	Support up to 5 internal geo-fence regions
Low Power Alarm	Alarm when internal battery is low
Wakeup Report	Report when the device wakes up
