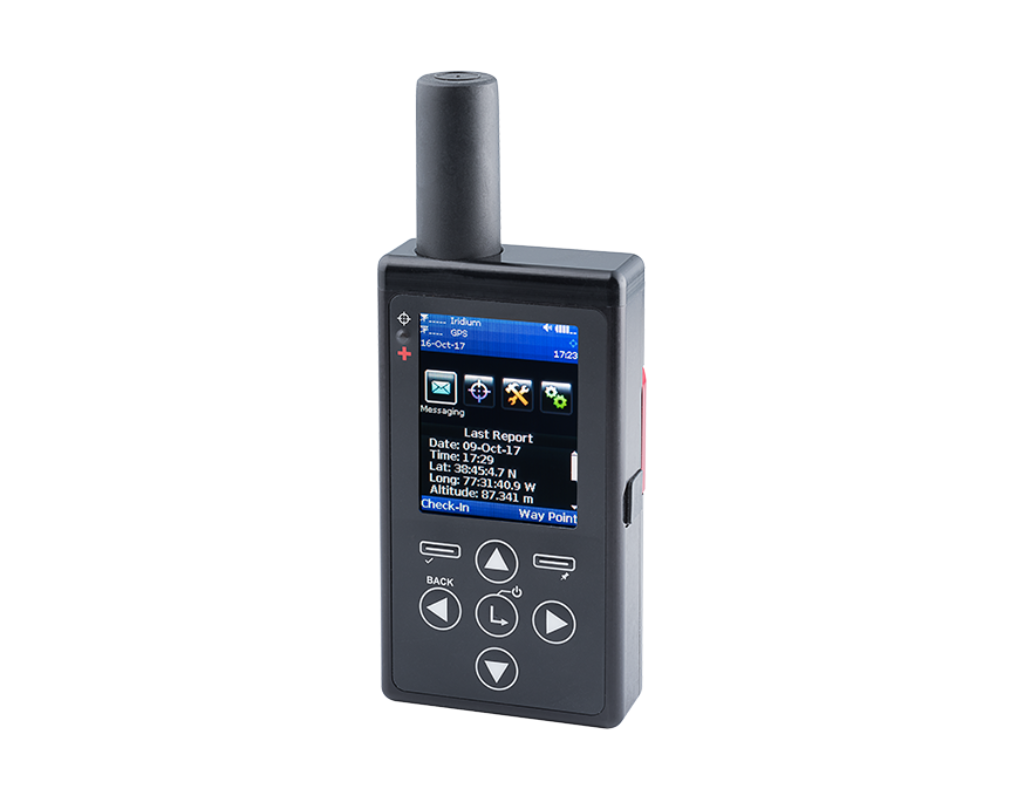

NAL Research Shout Nano Satellite Tracker

The SHOUT Nano is a handheld, global, two-way satellite messaging and personal tracking device. It utilizes Iridium’s Short Burst Data (SBD) service to provide location information determined by a GPS receiver, two-way inbound and outbound status, text messaging, and emergency/alert notifications.

Please note there is a minimum lead time of 2 weeks for this item as this product requires shipment from the manufacturer.

Please contact us for information on lead times.

NAL Research Shout Nano Satellite Tracker
£735.00

Description

The SHOUT Nano is a handheld, global, two-way satellite messaging and personal tracking device. It utilizes Iridium’s Short Burst Data (SBD) service to provide location information determined by a GPS receiver, the satellite tracker two-way inbound and outbound status, text messaging, and emergency/alert notifications.

The Nano satellite tracker is designed with ultra-low power consumption electronics drawing less than 35 A during sleep. With an internal 1.95 A-Hr rechargeable Li-Ion battery, it can send a position report every hour for up to two months (about 1,200 reports). The Nano is equipped with a high resolution color LCD and onscreen keyboards supporting transmission of free-text, canned messages and a combination of free-text and canned messages. The menu options are displayed as icons for quick access. The device can periodically wake up from sleep to send its position report to a command center. A 911 button is used for immediate emergency/alert notifications. Data are packaged in either standard or 256-bit AES encrypted format. Data can also be sent in encrypted PECOS formats to include Brevity codes.

 The SHOUT Nano Satellite Tracker Features:

  • Normal Tracking — programmed to automatically wake up and send a position report at a set interval ranging from continuous to once every seven days.
  • Emergency Alert — sends alerts to a designated monitoring center using a 911 button. The monitoring center and the user can then communicate to define further specifics of the emergency.
  • Free-Text Messaging — sends free-text via three different sets of onscreen keyboards.
  • Canned Text Messaging — sends canned (pre-defined) messages in short codes to save bandwidth instead of the entire message body.
  • Waypoint Tracking — sends and/or saves waypoints (interested landmarks) for later retrieval.
  • Check-In — allows a quick check-in message to be sent using a single soft key.

GTCTrack Compatible

Find out more about GTCTrack >

Our online mapping portal can track your Shout NANO to provide real-time information via your GPS location. Any person provided with the login can become an operator to monitor any number of GSM or satellite assets simultaneously in-real time and historically on both the Basic and Professional plans.

Key benefits include:

  • Geo-Fencing capabilities (Professional Plan only)
  • Alert options available, with varying degrees of urgency for operator and device holder
  • Global Tracking
  • Multiple layer options and map views
  • Inclusive to all devices with GPS tracking capabilities
  • Past-tracking data points are always accessible, until the device is de-activated
  • Mapping and asset grouping customisation options are available
  • Data Reporting and Scheduling functions
  • Notifications and alerts can be sent directly to the holder of the device

GTCTrack Basic Mapping

Available from just £6.50 ex VAT a month per device and provides location-based data from your device to the online maps. The tracking equipment determines its location by triangulating a position using GPS (Global Positioning System) and then transmits this information via GSM, Satellite, or VHF to a central server for processing.
  • Suitable for users with single devices
  • Excludes Geo-Fencing
  • Pay upfront annually to receive a discounted subscription of £65 ex VAT per year

GTCTrack Professional Mapping

Available from just £12.50 ex VAT month per device and allows you to track multiple devices on the same map in addition to features available on the Basic plan. This plan is essential for businesses or organisers managing multiple devices to be able to track the movements of individuals and assets.
  • Suitable for users requiring access to multiple devices under one login
  • Inlcudes Geo-Fencing
  • Fee is applicable per device
  • Pay upfront annually to receive a discounted subscription of £140 ex VAT per year
Read More
Read Less

Features

SMS

TRACKING

SOS

CUSTOM MESSAGES

PRE-DEFINED MESSAGES

2-WAY MESSAGING

Subscriptions

Service SBD 0 SBD 12 SBD 17 SBD 30
Activation Fee FREE $40.00 $40.00 $40.00
Monthly Fee $17.00 $20.00 $25.00 $42.50
Minimum Term 1 Month 1 Month 1 Month 1 Month
Suspended Monthly Fee $2.50 $2.50 $2.50 $2.50
Minimum Billable Message Size 30 Bytes 10 Bytes 10 Bytes 10 Bytes
Inclusive Bytes per Month 0 Bytes 12,000 Bytes 17,000 Bytes 30,000 Bytes
Overage (per 1,000 Bytes) $1.50 $1.50 $1.75 $1.50
SBD Registration/Mailbox Check $0.05 $0.05 $0.05 $0.05

Specification

General Specifications

Dimensions 4.0" x 2.2" x 0.8"
Weight 6.5 oz
Battery Type

Rechargeable Li-Ion

1.95 A-Hr Single Cell

3.6V to 4.2V

I/O Interface Standard USB
Software Interface AT Commands through USB
Operating Temp –40°C to +85°C (–40°F to +185°F)
Operating Humidity < 75% RH
Operating Frequency 1616 to 1626.5 MHz
GPS Frequency 1575.42 MHz (L1 carrier)

Coverage

Coverage
