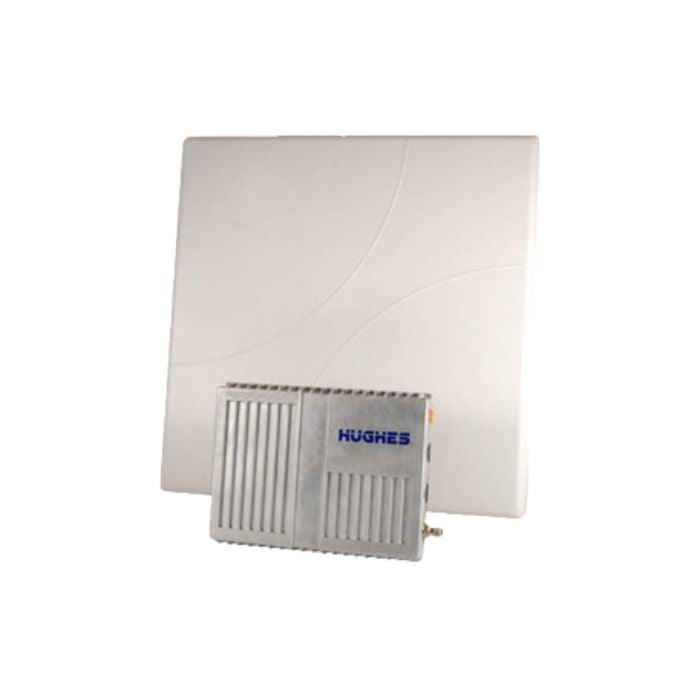

Hughes 9502 M2M BGAN Satellite Terminal

Hughes 9502 M2M BGAN Satellite Terminal

The Hughes 9502 is an IP satellite terminal that uses the Inmarsat Broadband Global Area Network (BGAN) to deliver highly reliable connectivity. The terminal is geared towards IP SCADA and machine-to-machine (M2M) applications, so is right at home in industry sectors such as environmental or pipeline monitoring, automation, surveillance, or out-of-band management to primary site communications.

Add your email to be alerted when the Hughes 9502 M2M BGAN Satellite Terminal becomes available.

Hughes 9502 M2M BGAN Satellite Terminal


Designed to be budget-friendly, the Hughes 9502 terminal allows BGAN connectivity to hard-to-reach or unmanned sites where internet connection does not exist.

The terminal enhances environmental, utility, and industrial operations such as SmartGrids or well site automation by transmitting rock-solid, global, end-to-end IP connectivity levels.

In the event of a power outage, the Hughes 9502 engages its integrated IP Watchdog to guarantee “always-on” network connectivity. Any loss of power to the terminal and its auto-context activation kicks in to return its power to itself.

Keep Costs Down

  • Ultra-low power consumption with just 1W while idling
  • Achieve end-to-end IP connectivity in power-starved regions
  • Auto-on/auto context activation protects sensitive energy budgets
  • Free over-the-air firmware upgrades

Safety and efficiency are included as standard with the Hughes 9502. It comes with 10m of RF cable which means the antenna can be positioned remotely, away from the transceiver, to overcome complicated installation setups. Meanwhile, the SIM card can be housed in an enclosure to protect against theft or vandalism.

Read More
Read Less


Satellite Transmit Frequency 1626.5–1660.5 MHz
Satellite Receive Frequency 1525–1559 MHz
GPS Frequency 1574.42–1576.42 MHz
IDU Weight 1.2 Kg (2.64 lbs)
IDU Dimensions 150 mm x 200 mm x 45 mm
ODU Weight 1.9 Kg (4.18 lbs)
ODU Dimensions 385 mm x 385 mm x 33 mm
Operating Temperature -40° C to +75° C
Storage Temperature -55° C to +75° C
Humidity 95% RH at +40° C
ODU Wind Loading Survival wind loading (with
optional mount) up to 100 mph
IDU Water and Dust IP-40 Compliant
ODU Water and Dust IP-65 Compliant
Input Voltage +12 Vdc/+24 Vdc nominal
Firmware Upgrades Over the air or local
