Description
Optimised Cellular Connectivity
Excell makes sure you receive the best performance within range of any cellular network by optimising the distance, speed, and throughput of the connection.
The Excell solution allows users to enjoy the benefits of omnidirectional and directional antennas in a powerful 4G solution.
By harnessing both types of antennae, Excell is able to deliver the best performing connectivity possible.
More Speed, More Coverage
Designed to maximise cellular connection, the Excell solution comes with beam forming and a built-in modem that minimises signal loss. Features like this are only found in today's most powerful and advanced systems.
Resilient and Durable

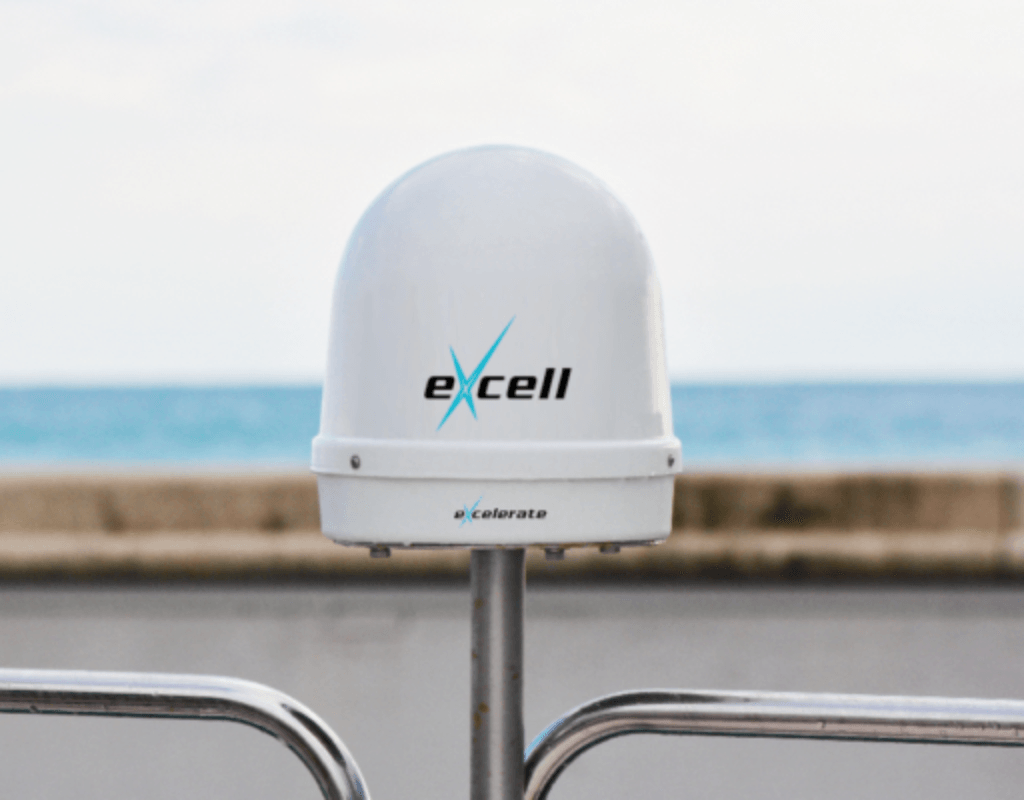

The Excell antenna itself is made from hardened plastic meaning it is dust and waterproof, UV stable, and IR reflecting, allowing it to easily withstand even the harshest elements.
Flexibility
The system can be used as a standalone cellular enhancement solution, or with the ability to connect to routers, it can be used as an additional benefit to an existing solution.
Easy to Install
The lightweight Excell unit is just 2.5kg, so can be mounted and installed with ease.
Small and Compact
Measuring in at just 250mm in diameter and 230mm tall, the unit is as effective as it is discrete.
Stand-alone Connectivity
Because the Excell unit carries its own SIM capability, and the fact that any standard SIM works in the unit, it can enhance any cellular connection without the need for additional equipment.
Read More
Specification
Specification
| Antennas | Diversity plus MIMO Antenna System, Ultra-Wide-Band with RADAR Reflector, High Efficiency, High Gain |
| Modem | High performance Universal Band LTE Modem |
| SIM | ODU |
| Weight | 2.5kg |
| Mounting | 4 x M8 stainless steel screws (A4), rubber sealed |
| Radom-Dimension | Diameter 250mm x Height 400mm |
| Radom-Material | Co-extruded plastic (hybrid layer), UV stable, IR reflecting |
| Connection to BDU | Single Cable Coax 750hm (RG6) or 50 Ohm low loss |
| Max Cable Length | 500hm: up to 300m, 750hm: up to 100m |
| Power Supply | Phantom type, through coaxial cable. Max 38V DC |
| Power Consumption | 5W during operation, 8W peak during power-up |
| Operating Temperature | -45°C to +55°C |
