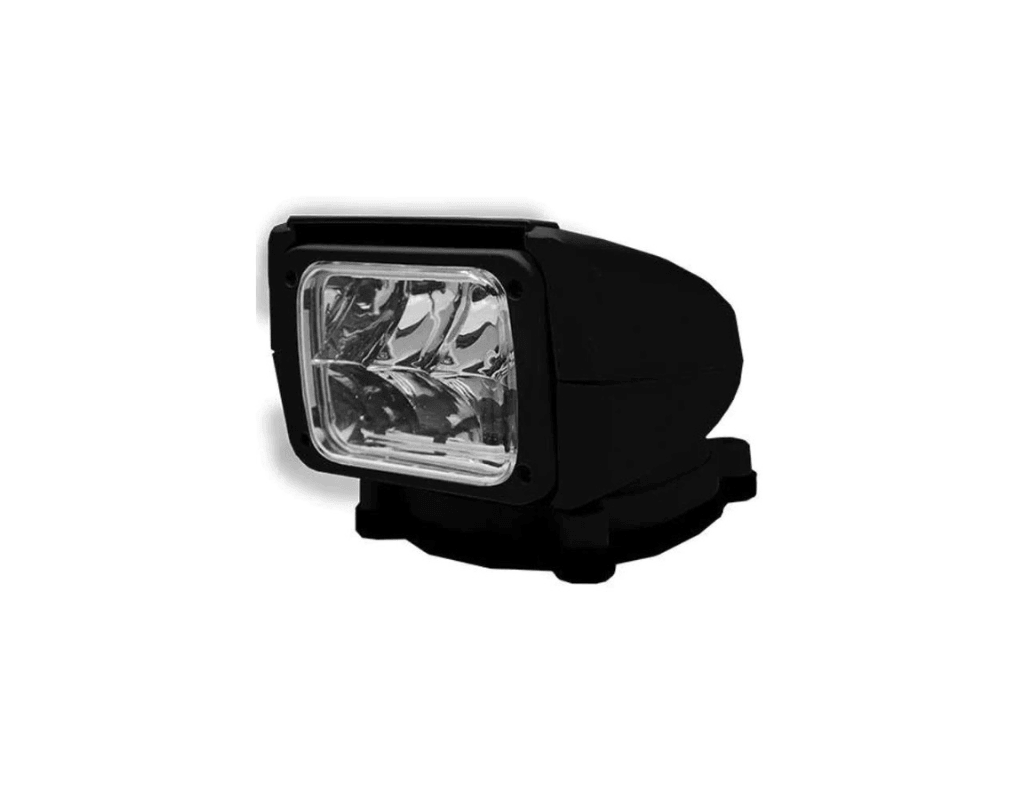

ACR RCL-85 LED Searchlight (Black)

ACR RCL-85 LED Searchlight (Black)


Model Number: RCL-85B / Product Number: 1957

The RCL-85 LED’s sleek design makes it an attractive and cost-effective choice for small to medium-sized recreational powerboats as well as light commercial vessels.  This searchlight comes with a wireless handheld remote to rotate the light 350 degrees.

Please note: we do not hold stock of this product but can order on a case-by-case basis. Lead time is approx. 2-4 weeks.

ACR RCL-85 LED Searchlight (Black)


The RCL-85 provides an affordable alternative to halogen searchlights to small to medium sized leisure vessels as well as light commercial vessels. It's 240,000 candelas using 6 High Flux (30W) LEDs offer visibility of over half a nautical mile and are controlled via a wireless handheld remote control.

The searchlight can tilt 90 degrees and has an 8-degree beam angle while the strobe function allows you to signal for help.

The RCL-85 is offered with a 2 year warranty against factory defect in materials and workmanship.

Read More
Read Less




5.5 x 6.3 x 7.7” (14 x 16 x 19.5 cm)

Weight 1.34 kg (searchlight only)

Acrylonitrile Styrene Acrylate (ASA) Housing for improved weather resistance


Remote-controlled wireless handheld remote (included) / 433.92 MHz

Peak Beam Candle Power


Peak Beam Maximum Distance

3,215 Feet (980 Meters)

Beam Pattern / Angle SPOT / 8 degrees
Elevation Angle 90°
Rotation 350° Continuous
Rotation Speed 18° per second
Elevation Speed 13° per second
Lamp LED 30W (OSRAM x 6) / 50,000 hour life
IP Rating IP 56 (Housing) / IP 68 (LED Module)
Footprint Diameter  5.03” x 4.09” (12.8 x 10.4 cm)
Power Requirements 12 or 24 V DC
Warranty 2 Years
Approvals FCC / CE / R10
Key Features
6 High Flux LEDs (OSRAM)
240,000 Candela, Max Beam Distance 3,215 Feet (980 m)
Wireless Handheld Remote (Included)
350o Rotation and 90o Tilt
2 Amps (12V) to 1.1 Amps (24V)
Efficient, long-life LED’s - 50,000 operating hours
UV & Weather Resistant
Simple Installation (12-24V Power Connection and 5M Wired Joystick Control Cable)
