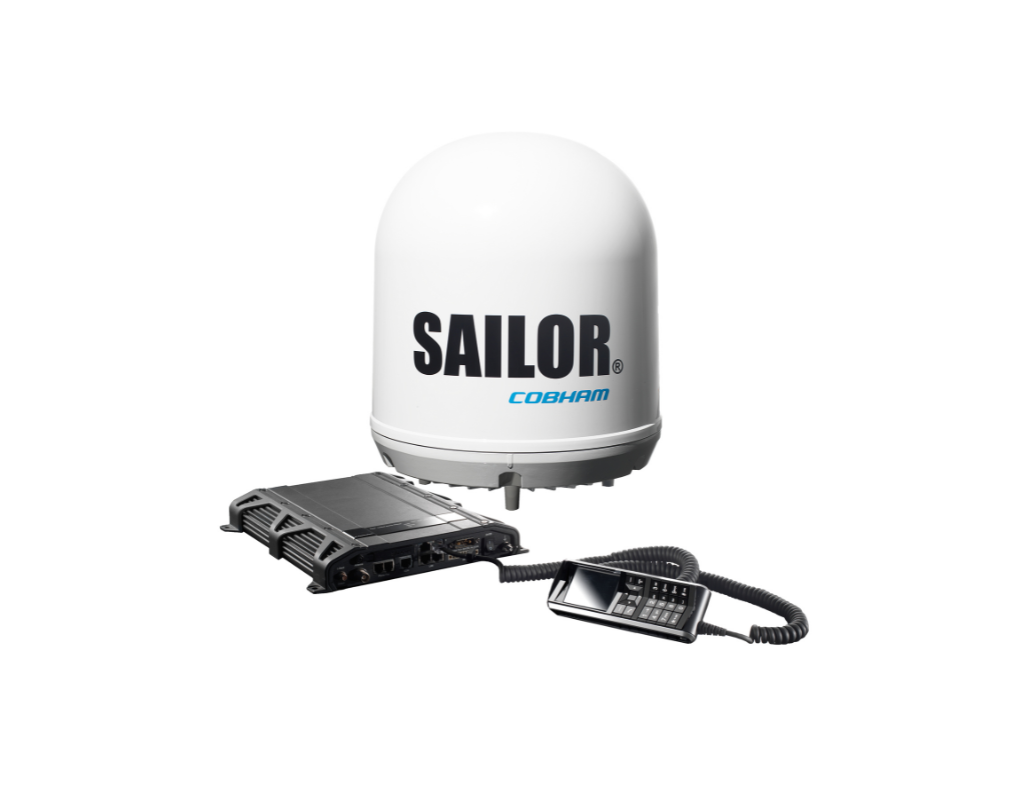

Inmarsat Sailor 500 FleetBroadband combines optimal performance with extensive functionality via a compact antenna. With a diameter of only 60cm and weighing just 16kg, it delivers amazing data speeds of up to 432kbps. Offering up to nine multiple voice calls and one data connection it meets the needs of all types of large deep sea vessels.
Cobham Sailor 500 also offers streaming IP which offers a guaranteed data speed of up to 256kbps.
GPS capability allows the equipment to send location data back to HQ - combined with our GTCTrack Mapping Portal this is a powerful tool to create alerts, reports and view live and historic data.
FleetBroadband is currently available to use with a pay monthly contract from Inmarsat.
With high-speed internet connectivity, running efficiency enhancing custom IP solutions in parallel with email, VPN and voice calling is all in a day’s work for SAILOR 500 FleetBroadband. It enables tracking and telemetry functionality, so colleagues on shore have all the information they need. Also, the SAILOR 500 FleetBroadband provides communication and internet access for crew, which is vital for ensuring an efficient workforce.
SAILOR 500 FleetBroadband uses a fully stabilized 3-axis antenna with rate sensors for improved performance and fast, intelligent satellite tracking.
SAILOR 500 FleetBroadband is easy to deploy and getting connected is a straightforward, cost-effective process. The system is is based on standard IP services and features a clear user interface, to connect your computer, corporate network, external sensors or phone system simply and securely.
With up to nine simultaneous voice lines possible using Inmarsat Multi-voice, an important part of the SAILOR 500 FleetBroadband solution is the Thrane IP Handset. This advanced plug-and-play handset provides an intuitive user interface through a 2.2” TFT colour screen and features cutting-edge technology.
SAILOR products are highly regarded by maritime professionals for their design and build quality, which results in excellent reliability.
Our online mapping portal can track your Cobham Sailor 500 to provide real-time information via your GPS location. Any person provided with the login can become an operator to monitor any number of GSM or satellite assets simultaneously in-real time and historically on both the Basic and Professional plans.
Antenna (ADU) Measurements: 655 x 630mm
|Weight||Above Deck Unit Weight: 19 kg
Below Deck Unit Weight: 2.5 kg
Standard IP Speed: Up to 432 kbps
Streaming IP Speed: 32, 64, 128, 256 kbps
4 kbps AMBE+2
|Power Supply and Consumption||
DC input range (isolated) 10 to 32V DC
|Environmental Conditions||Ambient Temperature -25 to +55°C
Storage -40 to +85°C
Survival (power on, non functional) -40 to +80°C
